Features
* With power-saving mode, if the machine hasn't been used for 5 min, it will enter standby mode automatically.
*DIS and DIA value automatic input, including 5 types of ALU modes and 2 types of smart modes, tyre OPT modes and wheel weight hidden modes. Design of open programs, allows the user edit their practice mode to operate the balancer on their own need. This will greatly increase productvity.
Technical Specification
Max. Wheel Diameter
|
1180 mm
|
Wheel Width
|
1.5" - 20"
|
Rim Diameter
|
1" - 28"
|
Rotating Speed
|
140 rpm
|
Motor Voltage
|
100 - 230V 1Ph
|
Motor Power
|
90 W
|
Balance Period
|
7 s
|
Balancing Precision
|
±1 g
|
Second Time Mounting On Precison
|
≤5 g
|
Max. Wheel Weight
|
75 KG
|
Net Weight
|
130 KG
|
Gross Weight
|
158 KG
|

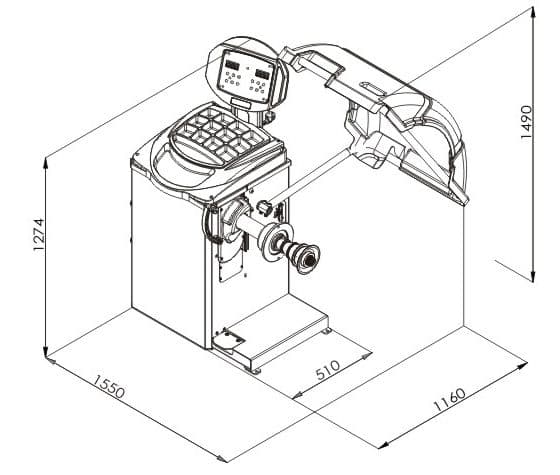

Packing Dimension
|
990*760*1150 MM
|
Quantity in 20" Container
|
34
|
Quantity in 40" Container
|
72
|
