14-52

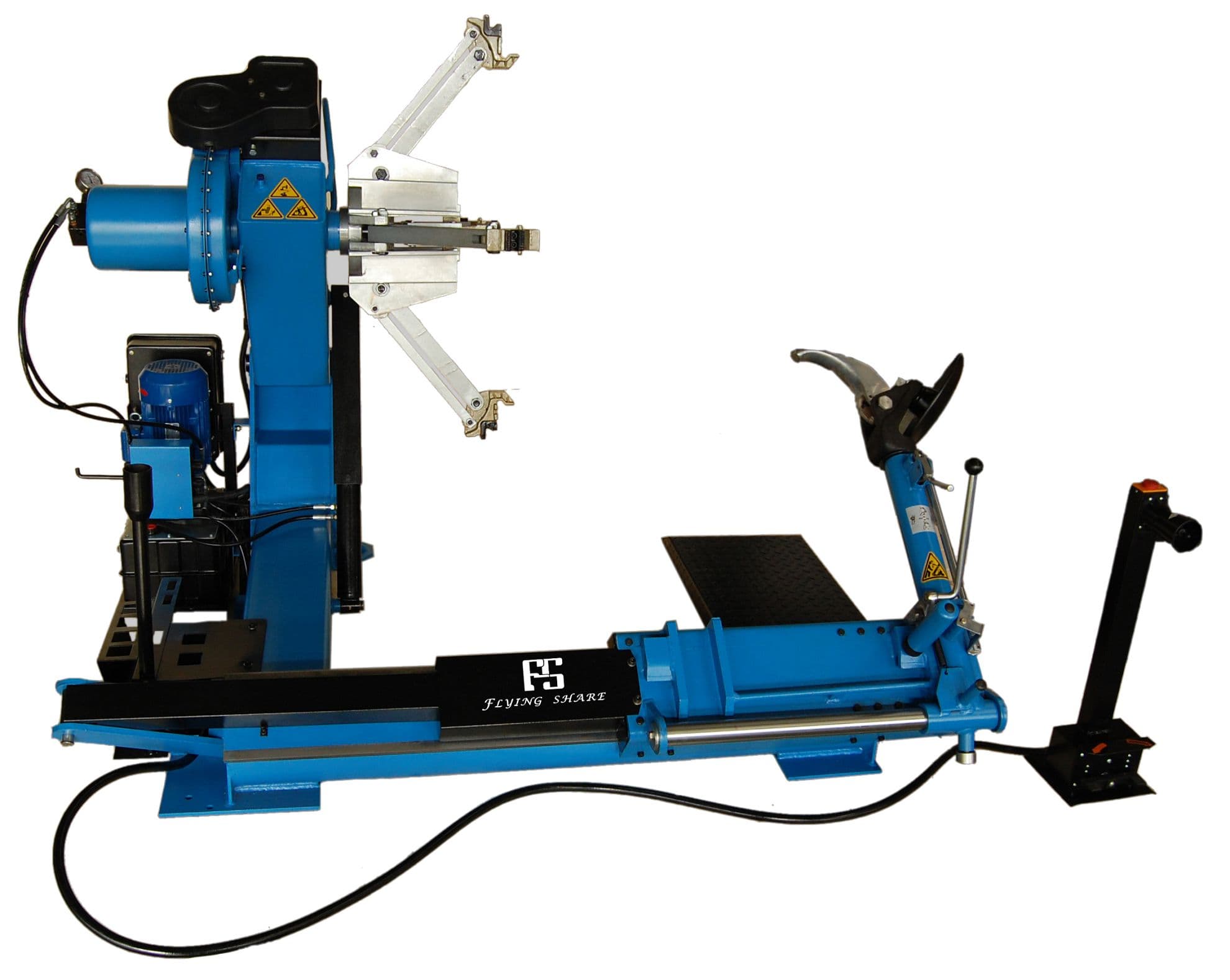

FS598
Features
Technical Specification
Rim diameter 14" - 42"
Rim diameter (with extensions clamp) 14" - 52"
Max.wheel weight 1600 kg
Max.wheel width
1050 mm
Max.tyre diameter 2300 mm
Hydraulic pump motor  2.2kW 380V - 3P - 50Hz (220V Optional)
Gearbox motor 2.2kW 380V - 3P - 50Hz (220V Optional)
Machine weight approx 758 kg
Noise level ≤70dB
Operation control voltage 24V
Temperature 0oC ~ 40oC
Overall dimensions approx
2500 x 2000 mm
Bead breaker force
3300 kg
Power 220/400V  50/60Hz  1P/3P Optional
