| Rim diameter | 14" - 26" |
| Max.wheel weight | 500 kg |
|
Max.wheel width |
780 mm |
| Max.tyre diameter | 1600 mm |
| Hydraulic pump motor | 1.5kW 380V - 3P (220V Optional) |
| Gearbox motor | 1.8kW 380V - 3P (220V Optional) |
|
Bead breaker force |
2500 kg |
| Operation control voltage | 24V |
|
Machine weight approx |
520 kg |
|

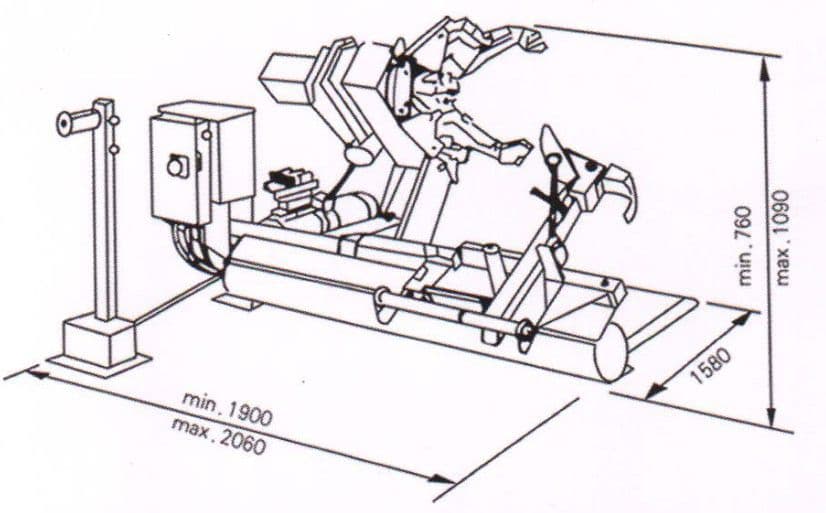

Overall dimensions approx |
2500 x 2000 mm |
| Power | 220/400V 50/60Hz 1P/3P Optional |
