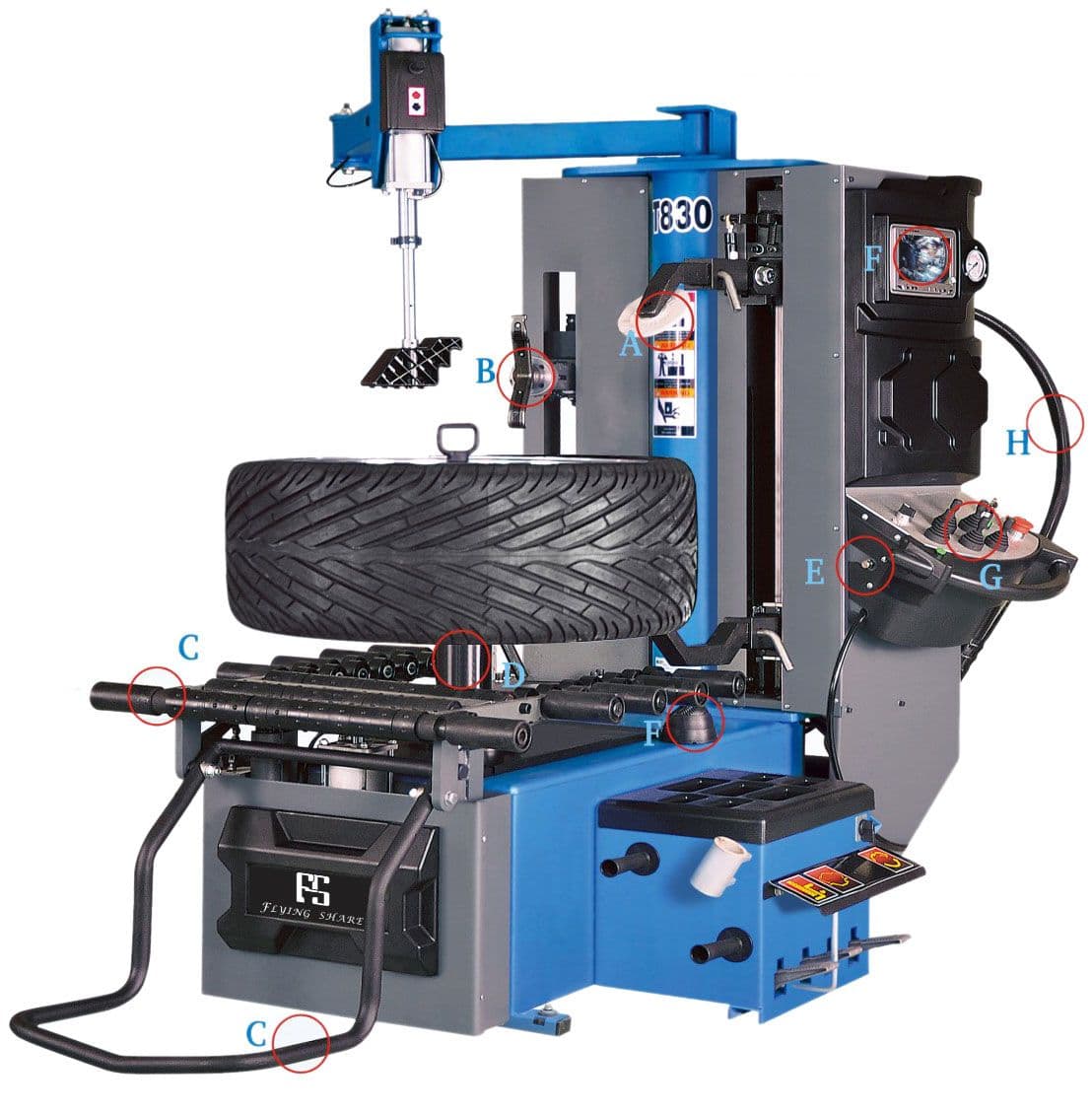

NO TOUCH TYRE CHANGER
T830

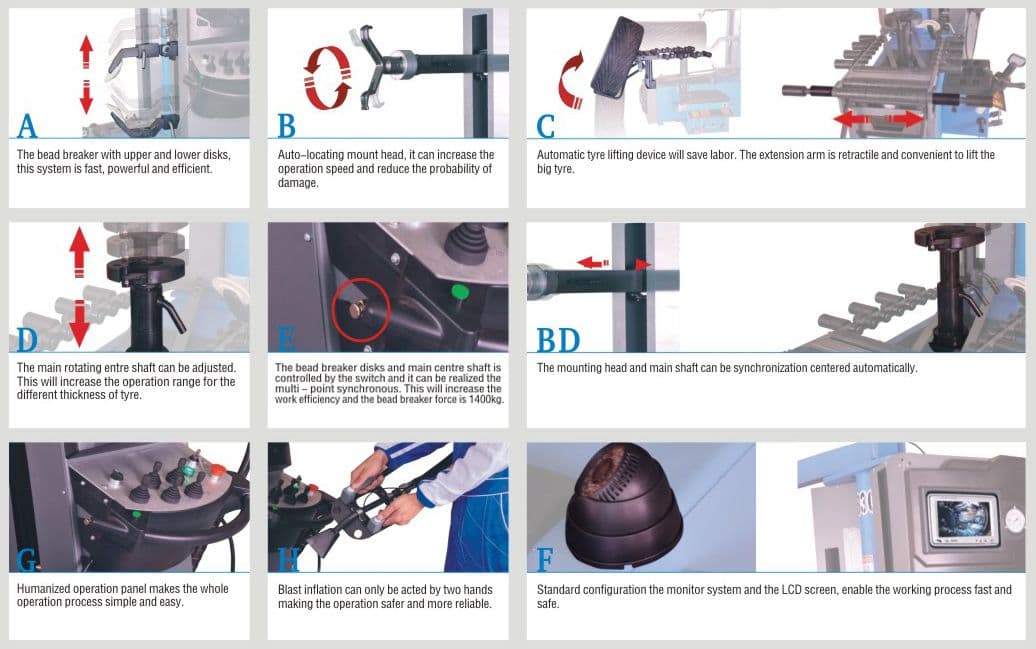

Features
The main shaft can longitudinal shift with double speed, easy to operate and assure to meet the minimum size 10”, maximum size 30” by slightly adjustment.
* The mounting head can antomatic centering.
The bead breaker dick is centering with the center of the main shaft. The position of two points can be adjustable.
The superior part of the reduction gear box is designed with high strength which can secure the machine to operate the stiff tyre.
The machine doesn't need the crowbar.
Automatically shutdown the machine on the condition of non-operation, this will save electric power.
The console is featured with humanization design.
The pump station is imported.
Technical Specification
Rim Diameter
10″ -  30″
Maximum Wheel Diameter
1300 mm
Wheel Width
 3″ -  13″
Operating Pressure
8 - 10 bar
Motor power
0.85 / 1.1 kW
Bead breaker power
1400 kg
Net Weight
584 KG
Gross Weight

653 KG

Packing dimension
1680×1150×2000 mm
Volume
3.86m3
Quantity in 20” Container
6
Quantity in 40” Container
14
