HELP TYRE CHANGER
T630ITF

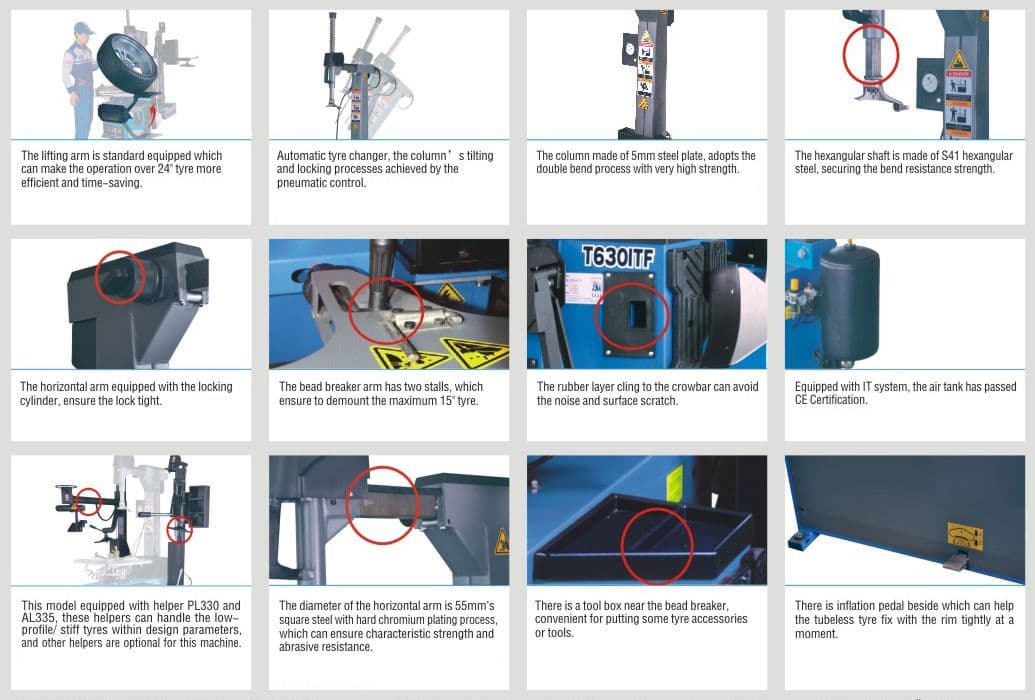

Features
The inner rim clamp as the standard configuration, it can increase the suitable size for 30" tyre.
The pedal has step-move function, making the operation more accurately and time-saving.
The fast inflatable device is standard configuration for this model, it will save half time on the inflation.
* The turntable equipped with the wear-resistant spacer and scale.
Technical Specification
Rim Clamping from Outside
14″ -  26″
Rim Clamping from Inside
17″ -  30″
Maximum Wheel Diameter
1200 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
580 KG
Gross Weight
635 KG
Packing dimension
1440×1140×1830 mm
Volume
3.0m3
Quantity in 20” Container
8
Quantity in 40” Container
16
