HELP TYRE CHANGER
T626R

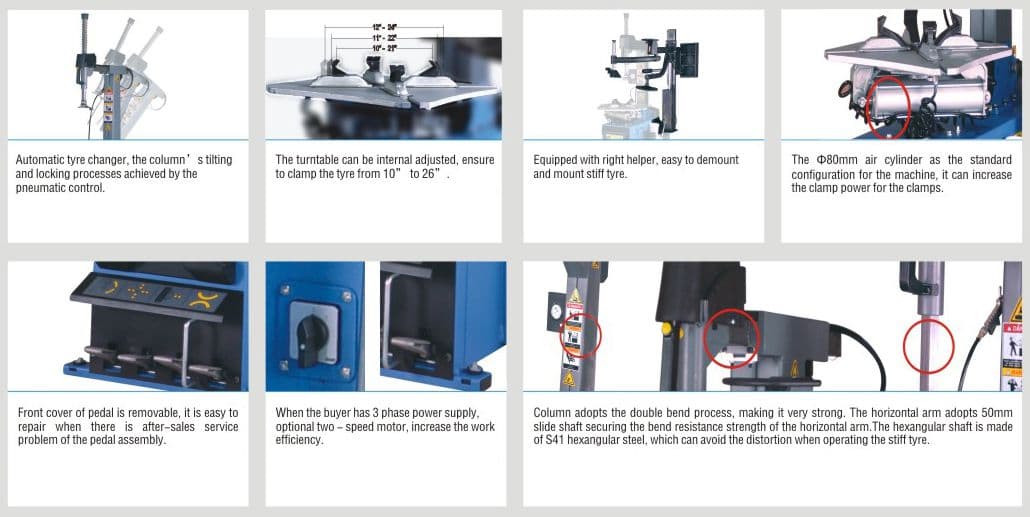

Features
The quick deflate valves are installed both ends of the breaker cylinder, to increase the reciprocating speed of the cylinder , the one-way movement can be completed in 2-3seconds.
The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
The bead breaker blade's design based on the are shovel, it can rotate at any directions, release more pressure during operation. The bead breaker blade is equipped with the protective cover.
Technical Specification
Rim Clamping from Outside
11″ -  24″
Rim Clamping from Inside
13″ -  26″
Maximum Wheel Diameter
1040 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight  (Machine+helper)
260 KG + 69 KG = 329 KG
Gross Weight   (Machine+helper)
291 KG + 88 KG = 379 KG
Partially disassemblyed packing(Machine)
1100×860×980 mm
Partially disassemblyed packing(helper)  1280×550×450 mm
Volume
1.23m3
Quantity in 20” Container
20
Quantity in 40” Container
46
