HELP TYRE CHANGER
T624ITR

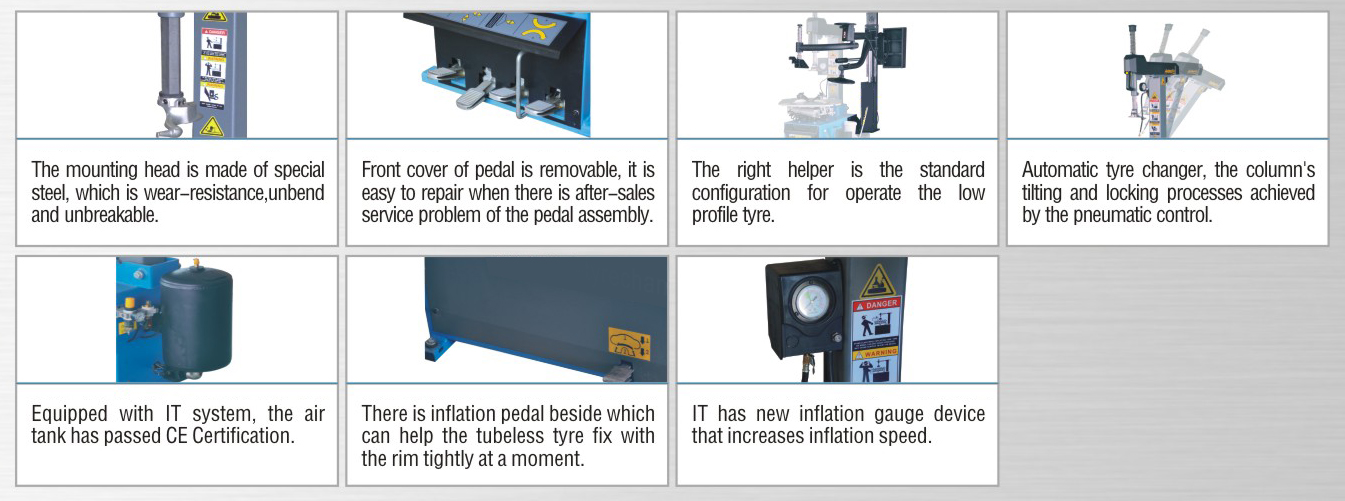

Features
The customer can optional equip the plastic tool head according to the
   requirement.
The universal switch is 40A with a pure silver touching point, it can bear great
   load with a long using life.
The protective sheath of the bead breaker is optional.
* You can optional equip the MJ-B motorcycle adaptor, convenient dismantling,
   stable and reliable to use. It will not harm the rim and can be use positive and
   negtive. The adaptor will increase the clamping range.
* The clamp is made of special material, strong and durable.
* The claw, demounting head and bead breaking shoe are optional equipped with
   the protective cover. This can prevent the rim from being damaged for the
   operation incorrectly.
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
11″ -  20″
Rim Clamping from Inside
12″ -  24″
Maximum Wheel Diameter
950 mm
Wheel Width
 3″ -  12″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight  (Machine+helper)
235 KG + 71 KG = 306 KG
Gross Weight  (Machine+helper)
256 KG + 92 KG = 348 KG
Partially disassemblyed packing(Machine)
980×760×1010 mm
Partially disassemblyed packing(helper)  1280×550×450 mm
Volume
1.06m3
Quantity in 20" Container 26
Quantity in 40" Container
60
