Features

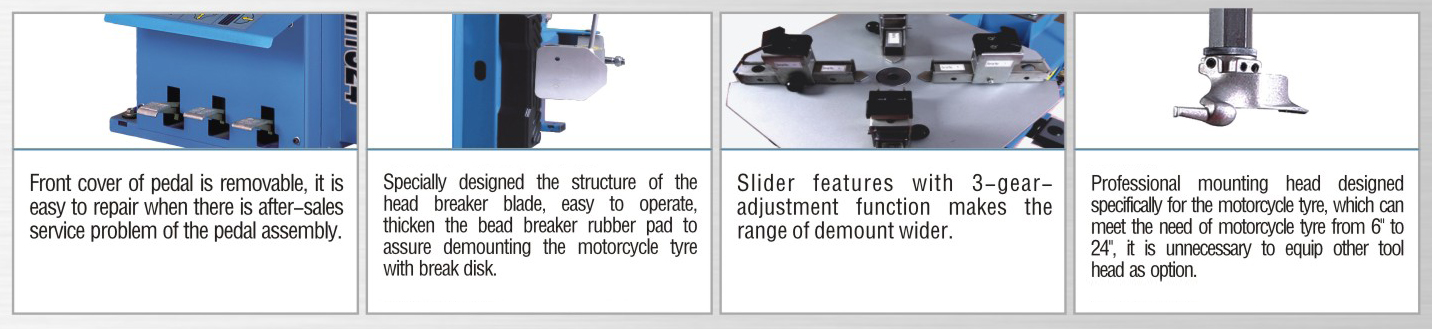

* Specially designed the structure of the bead breaker blade, easy to operate,
thicken the bead breaker rubber pad to assure demounting the motorcycle
tyre with break disk.
* The structure of the swing arm is economical and practical.
* Features with the auto self-centering function. Safety and reliable.
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Diameter
|
6″ - 24″
|
Maximum Wheel Diameter
|
960 mm
|
Wheel Width
|
3″ - 12″
|
Operating Pressure
|
8 - 10 bar
|
Motor power
|
0.75 / 1.1 kW
|
Noise Level
|
<75dB
|
Net Weight
|
186 KG
|
Gross Weight
|
214 KG
|

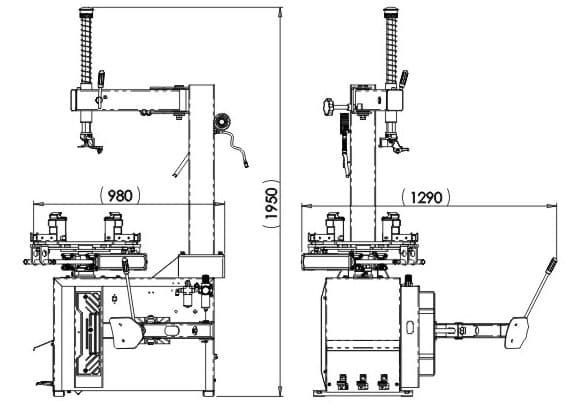

Packing dimension
|
980×760×950 mm
|
Volume
|
0.7m3
|
Quantity in 20” Container
|
34
|
Quantity in 40” Container
|
72
|
