SEMIAUTOMATIC TYRE CHANGER
T526U

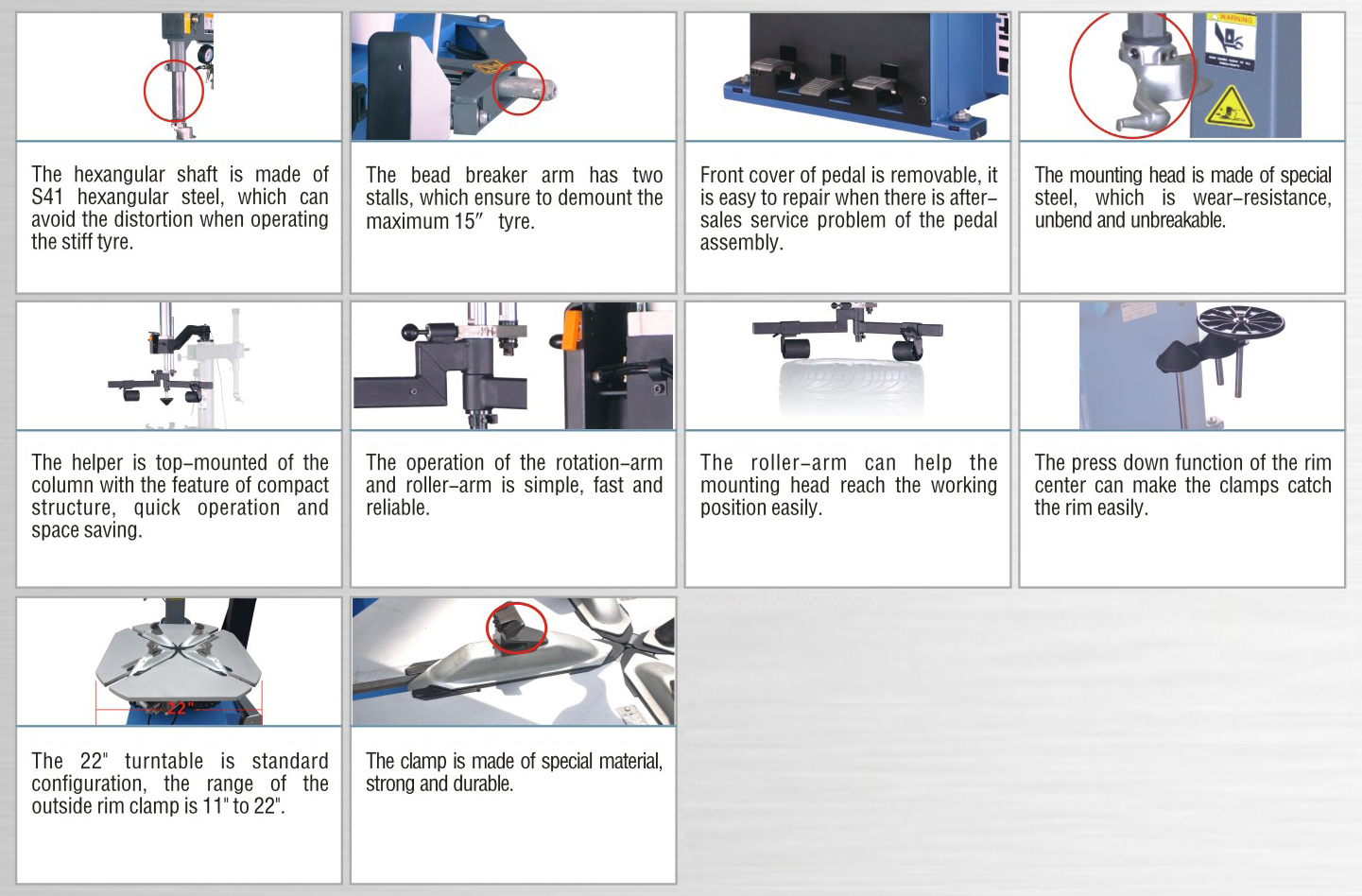

Features
* The claw, crowbar, demounting head and bead breaking shoe are optional
   equipped with the protective cover. This can prevent the rim from being
   damaged for the operation incorrectly.
The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
11″ -  22″
Rim Clamping from Inside
14″ -  26″
Maximum Wheel Diameter
1250 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
296 KG
Gross Weight
326 KG
Packing dimension
1290×1000×1100 mm
Volume
1.42m3
Quantity in 20” Container
18
Quantity in 40” Container
40
