Features

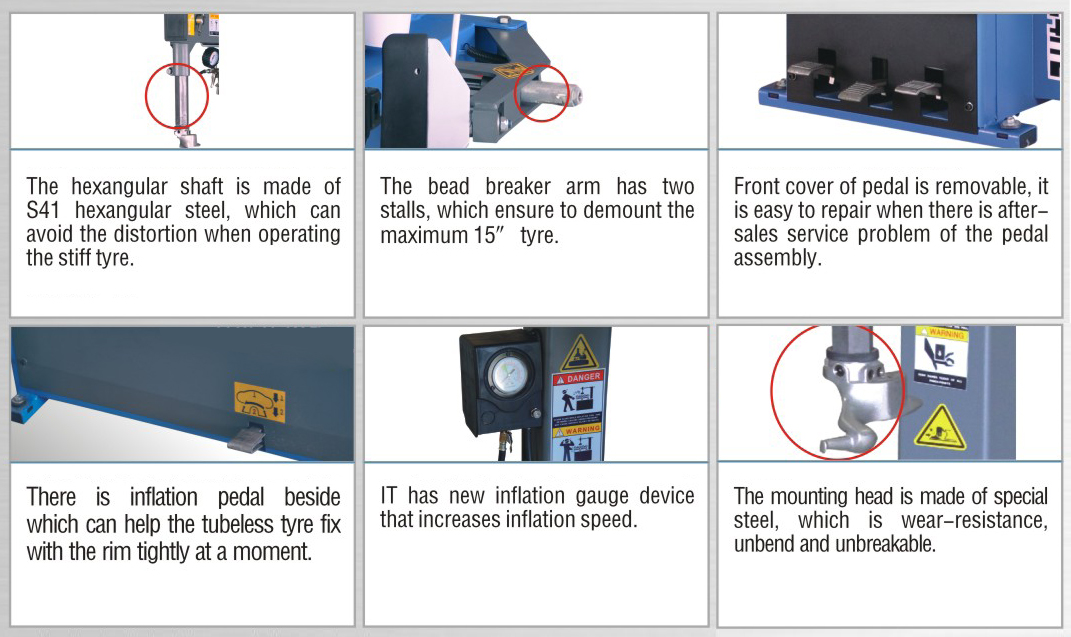

* The mounting head is made of special steel, which is wear-resistance, unbend
and unbreakable.
* The structure of the swing arm featured with economical and practical.

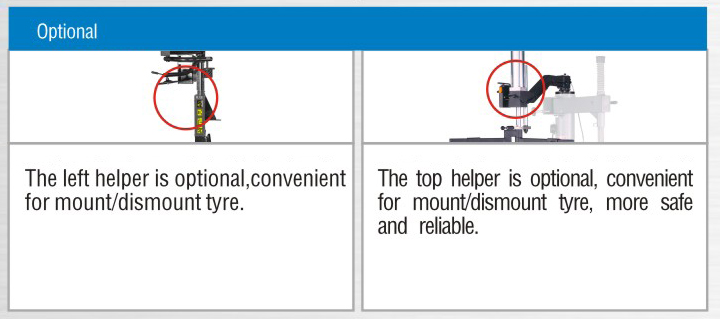

* The customer can optional equip the plastic tool head according to the
requirement.
* The universal switch is 40A with a pure silver touching point, it can bear great
load with a long using life.
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
|
11″ - 20″
|
Rim Clamping from Inside
|
12″ - 24″
|
Maximum Wheel Diameter
|
1250 mm
|
Wheel Width
|
3″ - 15″
|
Operating Pressure
|
8 - 10 bar
|
Motor power
|
0.75 / 1.1 kW
|
Noise Level
|
<75dB
|
Net Weight
|
258 KG
|
Gross Weight
|
265 KG
|
Packing dimension
|
1200×920×1050 mm
|
Volume
|
1.16m3
|
Quantity in 20” Container
|
22
|
Quantity in 40” Container
|
44
|
