SEMIAUTOMATIC TYRE CHANGER
T524E

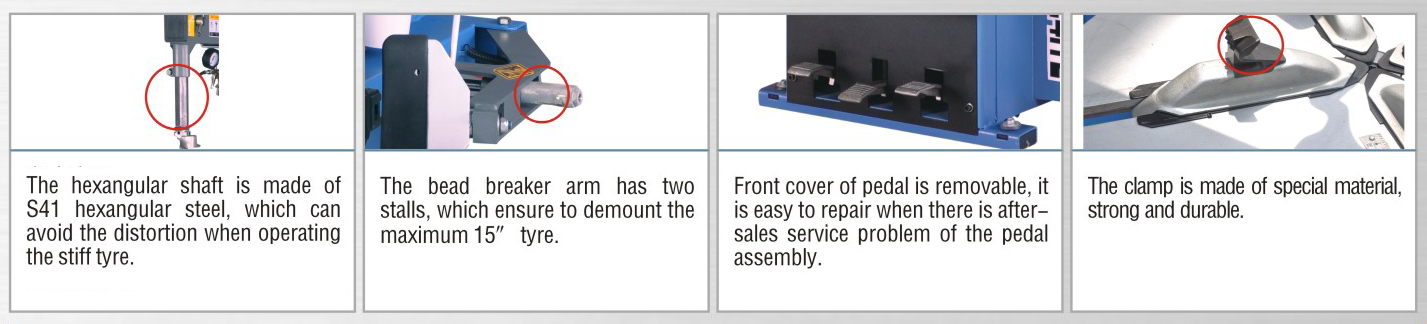

Features
* The mounting head is made of special steel, which is wear-resistance, unbend
   and unbreakable.
* The structure of the swing arm featured with economical and practical.

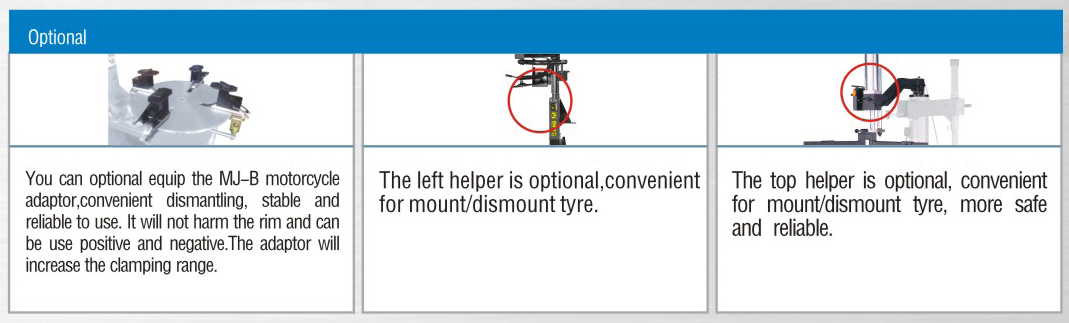

The customer can optional equip the plastic tool head according to the
   requirement.
The universal switch is 40A with a pure silver touching point, it can bear great
   load with a long using life.
The protective sheath of the bead breaker is optional.
Technical Specification

Rim Clamping from Outside
11″ -  22″
Rim Clamping from Inside
14″ -  26″
Maximum Wheel Diameter
1250 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
243 KG
Gross Weight
259 KG
Packing dimension
1200×920×1050 mm
Volume
1.16m3
Quantity in 20” Container
22
Quantity in 40” Container
44
