SEMIAUTOMATIC TYRE CHANGER
T524
Features
* The pedal has step function, which can mount the tire accurately and time saving.
The universal switch is 40A with a pure silver touching point, it can bear great
   load with a long using life.

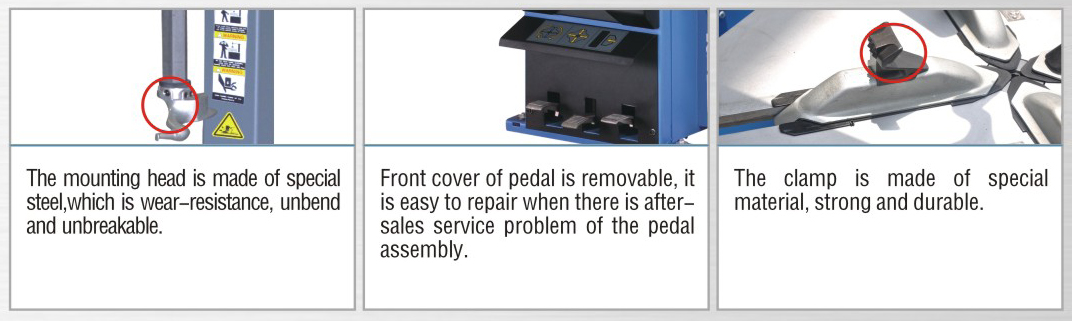

The mounting head is made of special steel, which is wear-resistance, unbend
   and unbreakable.
* The claw, crowbar, demounting head and bead breaking shoe are optional
   equipped with the protective cover.
 This can prevent the rim from being
   damaged for the operation incorrectly .
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
11″ -  20″
Rim Clamping from Inside
12″ -  24″
Maximum Wheel Diameter
960 mm
Wheel Width
 3″ -  12″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
187 KG
Gross Weight
216 KG
Packing dimension
980×760×950 mm
Volume
0.71m3
Quantity in 20” Container
34
Quantity in 40” Container
72
