SEMIAUTOMATIC TYRE CHANGER
T521
Features
* The pedal has step brake function, which can mount the tyre accurately and time
   saving.
* The universal switch is 40A with a pure silver touching point, it can bear great
   load with a long using life.

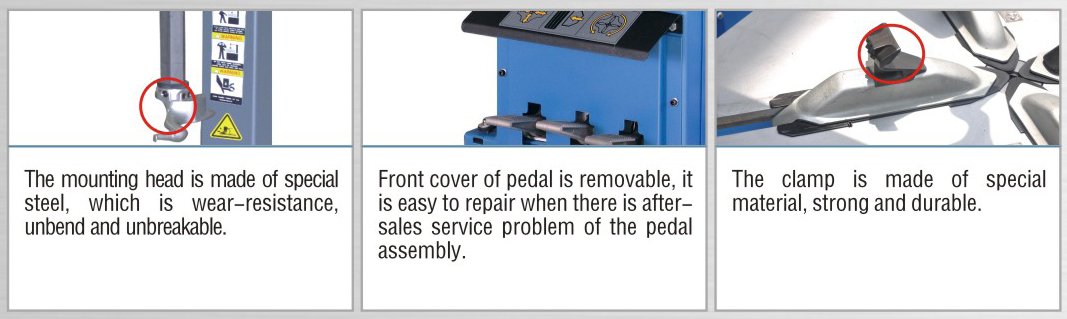

* The mounting head is made of special steel, which is wear-resistance, unbend
   and unbreakable.
* The claw, crowbar, demounting head and bead breaking shoe are optional
   equipped with the protective cover. This can prevent the rim from being damaged
   for the operation incorrectly.
* Economical model, under the condition to meet the right size, the body structure
   is compactly which can guarantee to fill 108 units in a HC 40 container, saving
   freight cost for customer.
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
10″ -  18″
Rim Clamping from Inside
12″ -  21″
Maximum Wheel Diameter
960 mm
Wheel Width
 3″ -  12″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
183 KG
Gross Weight
203 KG
Packing dimension
980×760×860 mm
Volume
0.64m3
Quantity in 20” Container
34
Quantity in 40” Container
72
Quantity in 40” HC Container
108
