T626IT - Flying Share

PRODUCTS

AUTOMATIC TYRE CHANGER

T626IT

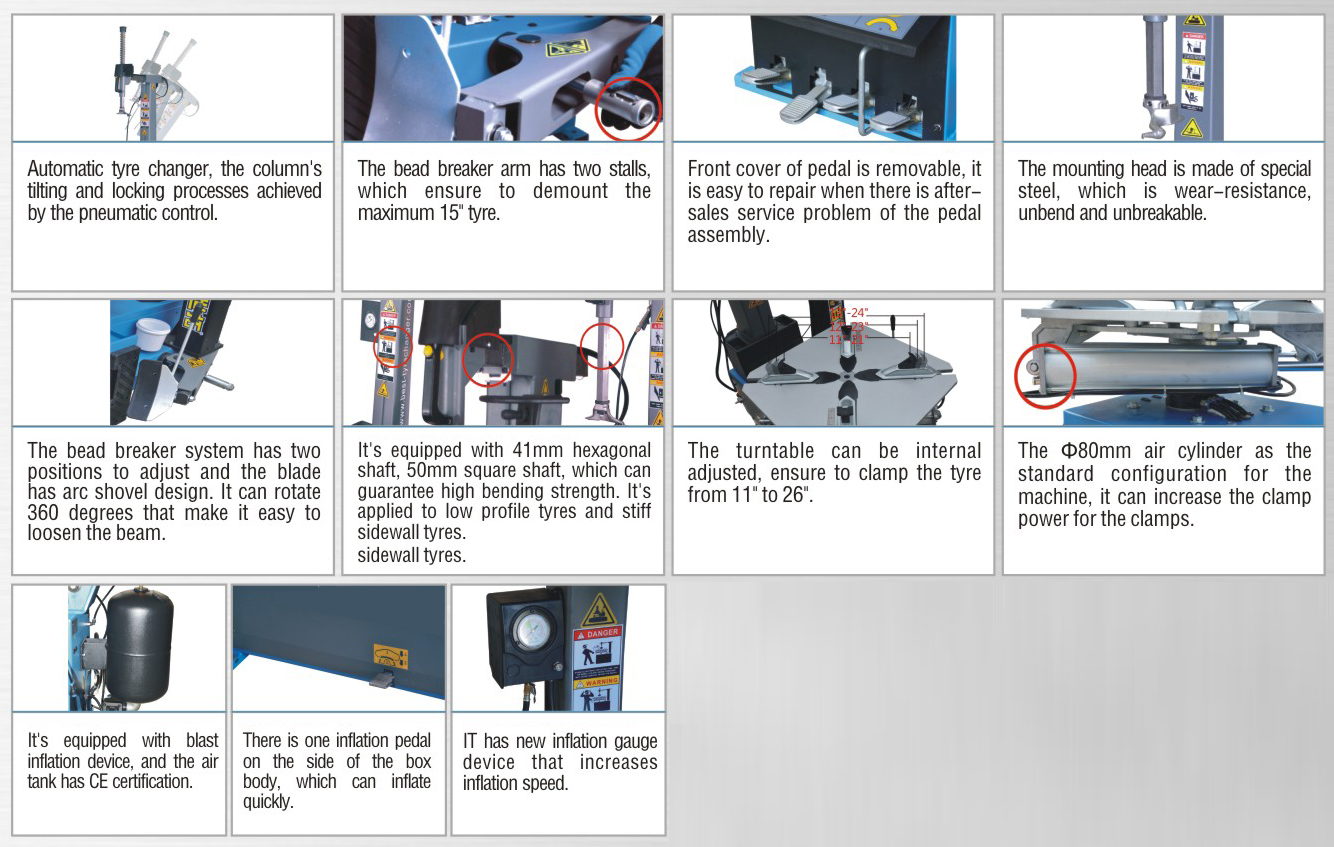

Features

* The quick deflate valves are installed both ends of the breaker cylinder, to
increase the reciprocating speed of the cylinder , the one-way movement
can be completed in 2-3seconds.

Technical Specification

Rim Clamping from Outside	11″ - 24″
Rim Clamping from Inside	13″ - 26″
Maximum Wheel Diameter	1040 mm
Wheel Width	3″ - 15″
Operating Pressure	8 - 10 bar
Motor power	0.75 / 1.1 kW
Noise Level	＜75dB
Net Weight	275 KG
Gross Weight	310 KG
Packing dimension	1100×860×1000 mm
Volume	0.95m³
Quantity in 20” Container	24
Quantity in 40” Container	52
