AUTOMATIC TYRE CHANGER
T626
Features

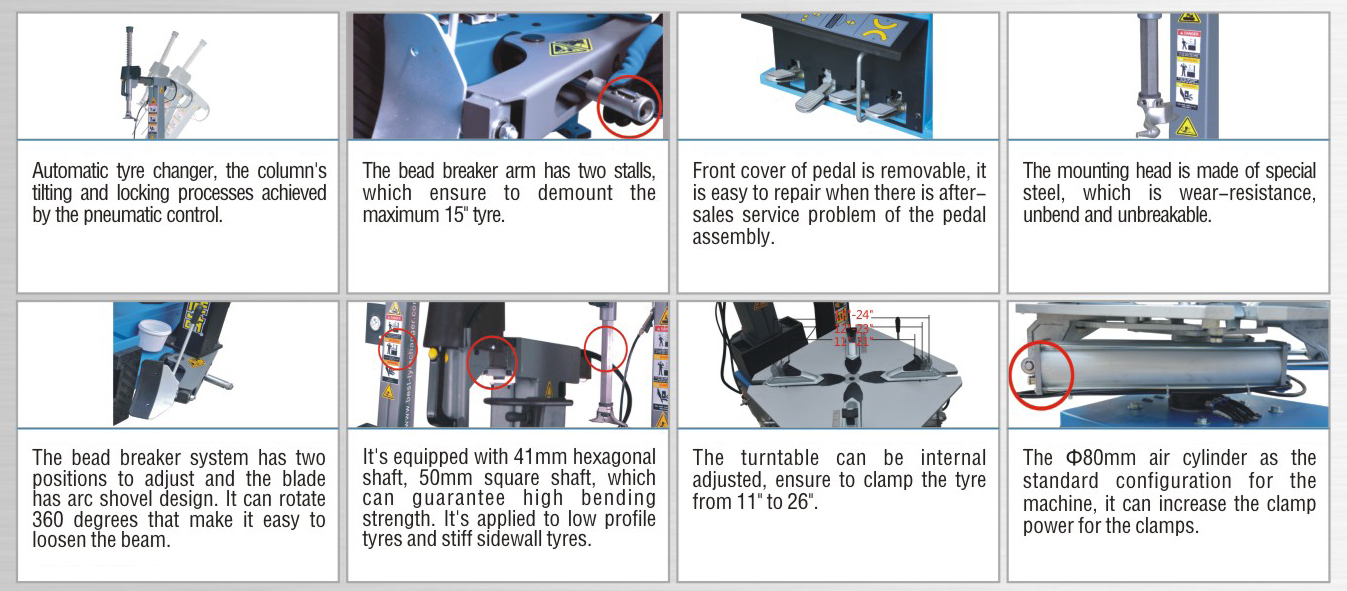

* The quick deflate valves are installed both ends of the breaker cylinder, to
   increase the reciprocating speed of the cylinder, the one-way movement
   can be completed in 2-3seconds.
* The universal switch is 40A with a pure silver touching point, in can bear great
   load with a long using life.
* The bead breaker blade's desing based on the arc shovel, it can rotate at any
   directions, release
   more pressure during operation. The bead breaker blade is equpped with the
   protective cover.
* Automatic tyre changer, the column's tilting and locking processes achieved by
   the pneumatic control.
* The protective sheath of the bead breaker is optional.
Technical Specification
Rim Clamping from Outside
11″ -  24″
Rim Clamping from Inside
13″ -  26″
Maximum Wheel Diameter
1040 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight
260 KG
Gross Weight
291 KG
Packing dimension
1100×860×980 mm
Volume
0.93m3
Quantity in 20” Container
24
Quantity in 40” Container
52
