Features
* Manual mechanical lock release system
* Driven by double hydraulic cylinders, makeit ascent and descent smoothly
* Self-locking protective mechanism
* Chain-type elevating system
* With strong capability, especially applies to imported cross-country cars

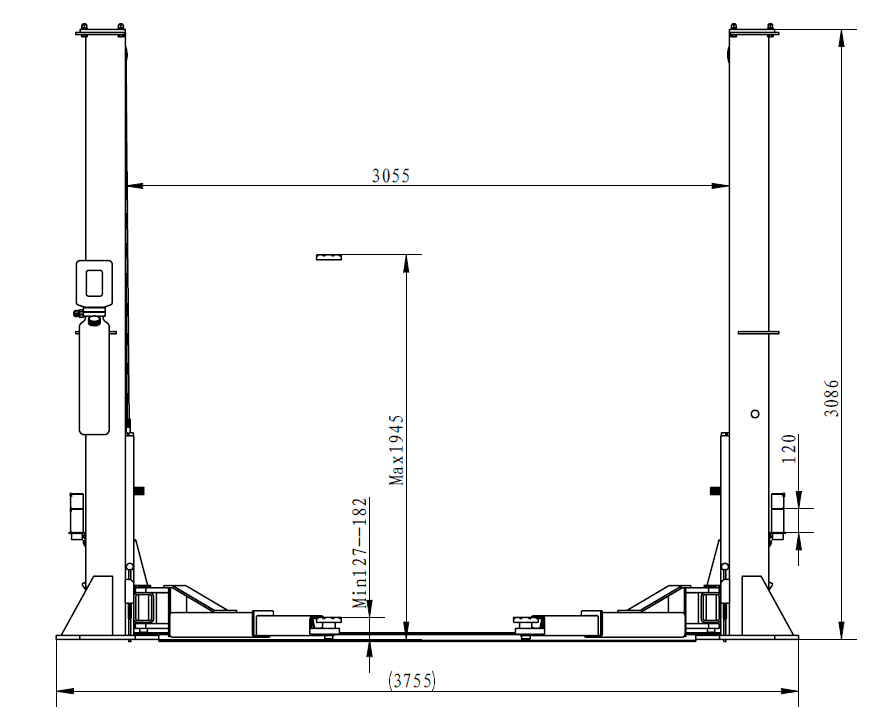

Technical Specification
Lifting Capacity
|
5.5 Ton / 6.8 Ton
|
Max. lift. height
|
1921 mm
|
Min. height
|
163 mm
|
Total height
|
3096 mm
|
Total width
|
3755 mm
|
Inside column
|
3055 mm
|
Lifting
time
|
50
s
|
Fall
time
|
20
s
|
Net weight
|
1100 kgs
|
Gross weight
|
1125 kgs
|
