Features
* Top built quality with CE-certificate

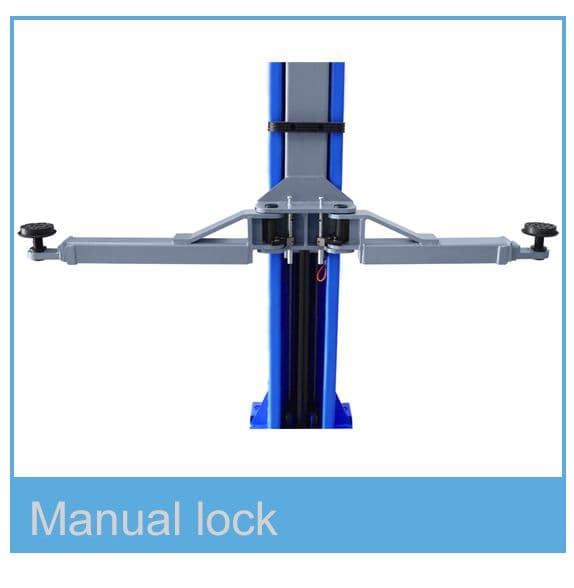

* Manual mechanical lock release system
* Column &Carriage &Arm are all welded by Robots
* Driven by dual hydraulic cylinders, make it ascent and descent smoothly.
* Two stage arm and asymmetrical design can be widely used for raising many kinds of cars.

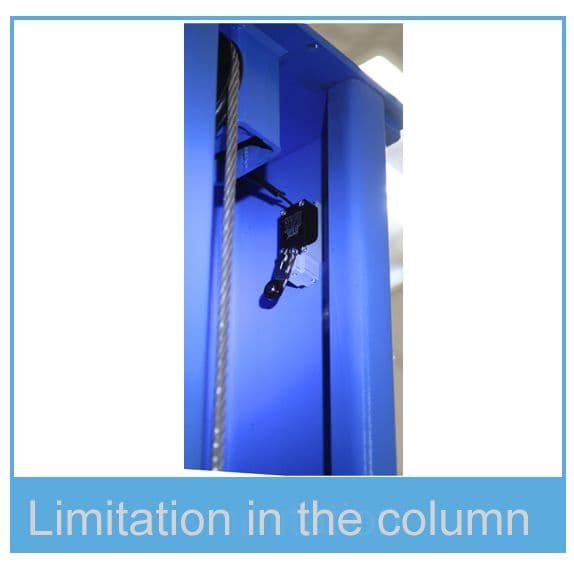

* Column cover & limitation in the column

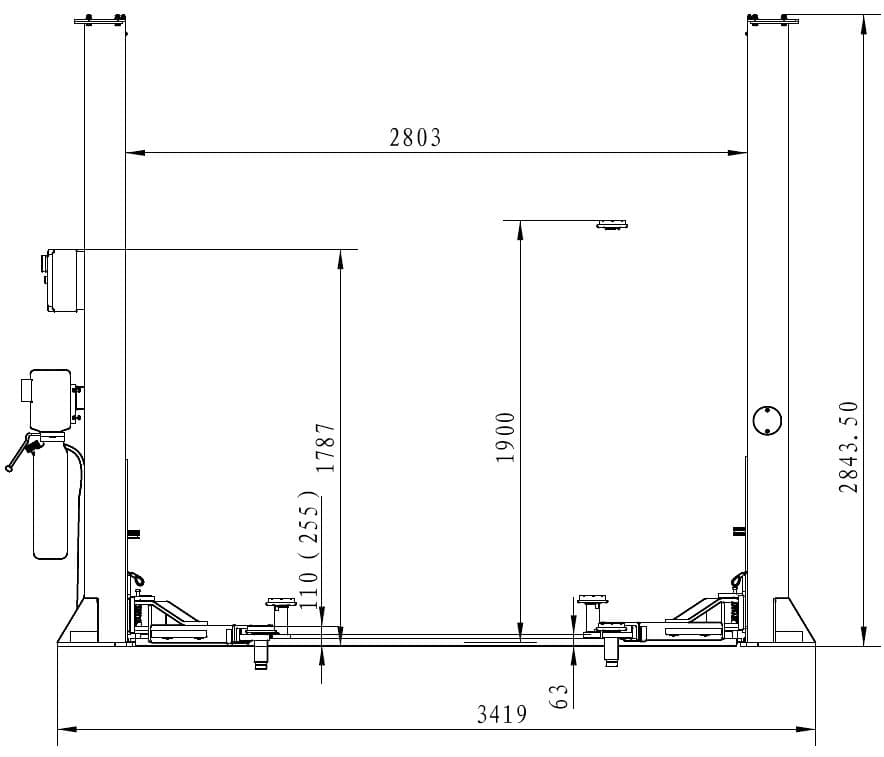

Technical Specification
Lifting Capacity
|
3.8 Ton
|
Max. lift. height
|
1900 mm
|
Min. height
|
110 mm
|
Total height
|
2843.5 mm
|
Total width
|
3419 mm
|
Inside column
|
2803 mm
|
Net weight
|
590 kgs
|
Gross weight
|
610 kgs
|
