BASEPLATE TWO POST LIFT
FS-6934
Features
* Manual mechanical lock release system
* Column &Carriage &Arm are all welded by Robots

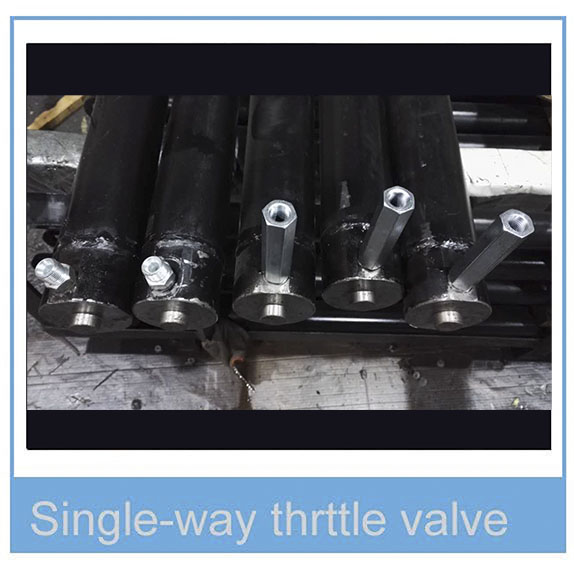

* Driven by hydraulic cylinders, make it ascent and descent smoothly
* Double self-locking protective system

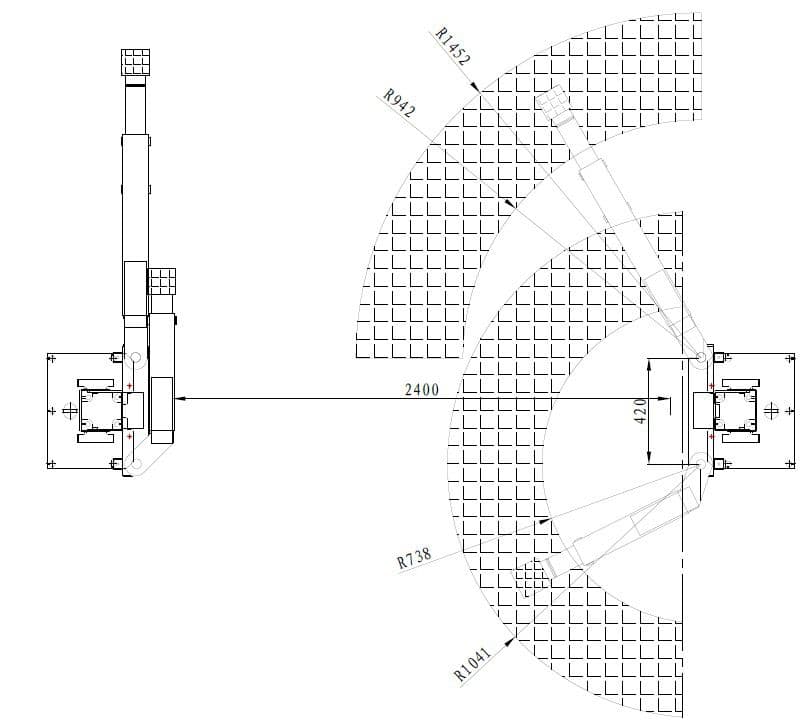

* Asymmetrical design makes it possible to open vehicle doors within narrow width between columns
Technical Specification
Lifting Capacity
4.0 Ton
Max. lift. height
1800 mm
Min. height
98 mm
Total height
2844 mm
Total width
3419 mm
Inside column
2799 mm
Net weight 590 kgs
Gross weight 605 kgs
