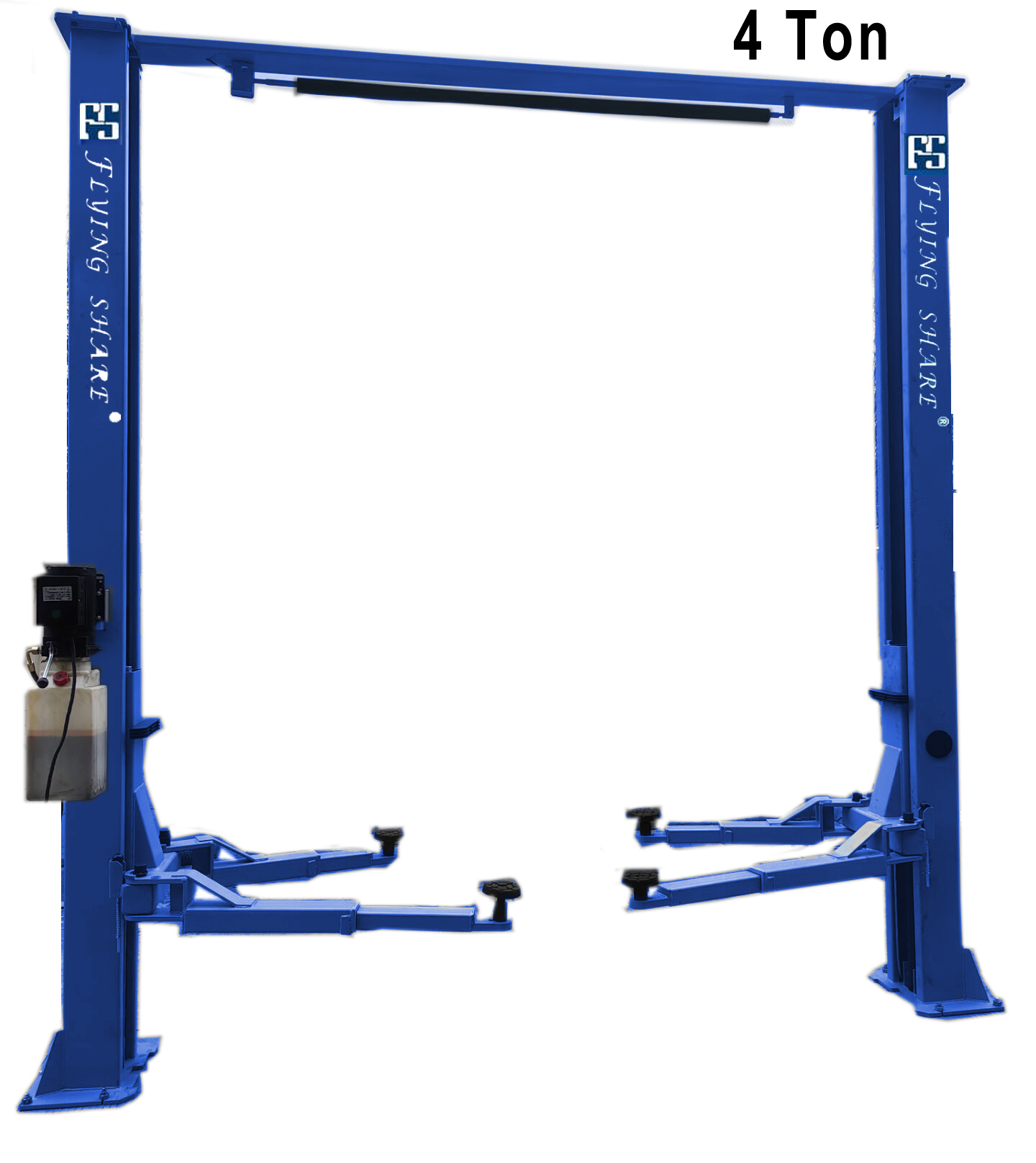

OVERHEAD TWO POST LIFT
Home > Products > Product
FS6844W
Features
* Gantry design,without influencing the floor space
* Driven by dual hydraulic cylinders, make it ascent and descent smoothly
* Double-insured self-locking protective device
* Chain-style elevating system
* Balanced by steel wire ropes

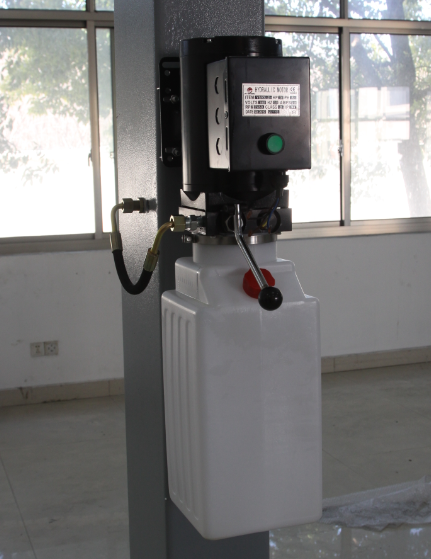

* Power unit can be installed on any side of lift
* Wide space between columns
* Slider block easier to be replaced

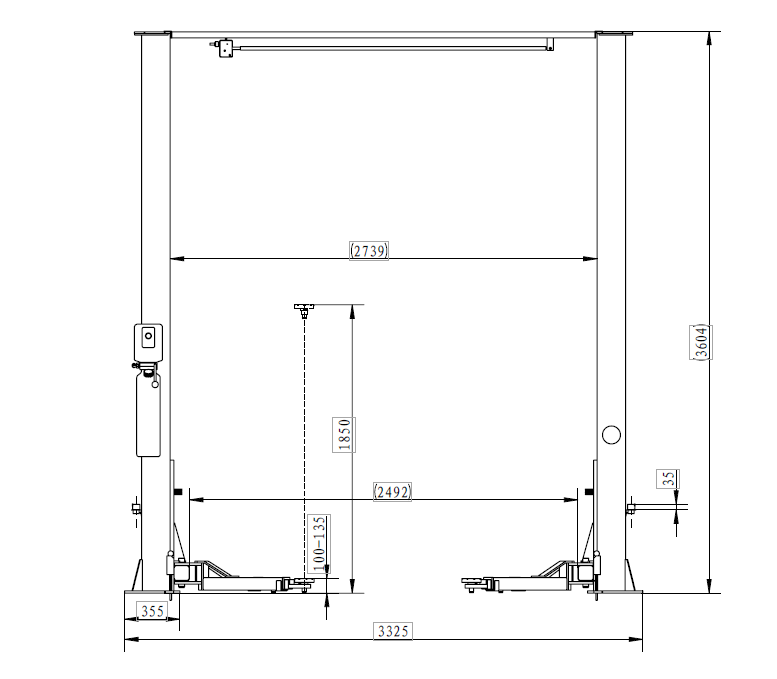

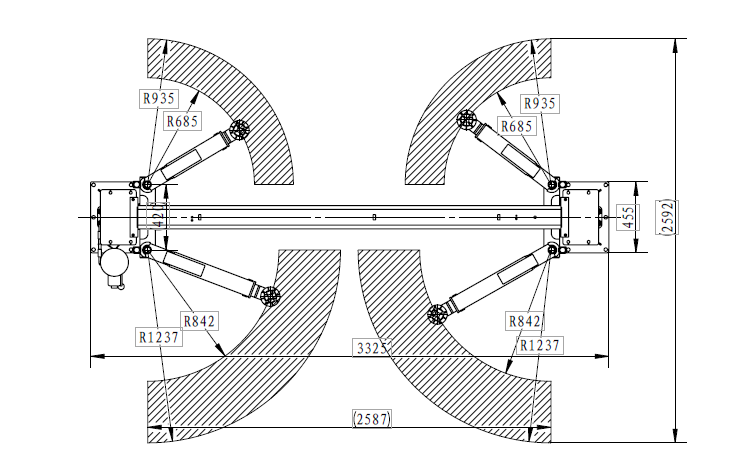

Technical Specification
Lifting Capacity
 4.0 Ton
Max. lift. height
 1850 mm
Min. height
 100 mm
Total height
 3604 mm
Total width
 3325 mm
Inside column
 2739 mm
Net weight
 570 kgs
Gross weight
 585 kgs
