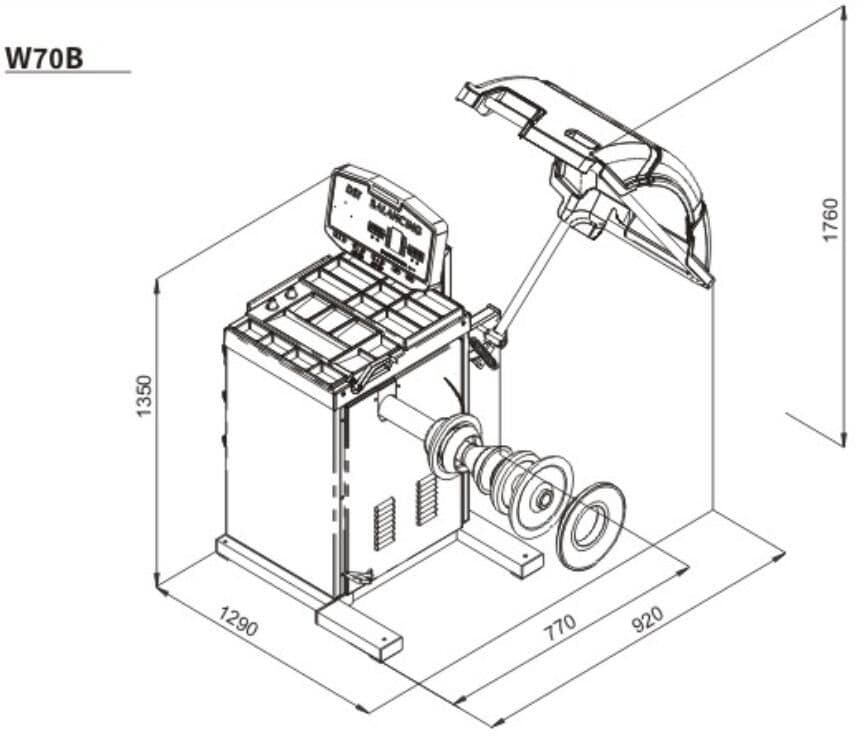

W70B
Features
* Wheel balancer with self-owned intellectual property.
* This machine has the balance modes including of static and kinds of ALU
   mode.

* With the car/truck conversion function key to guarantee the precision to be 50g
   when handing truck tyre and 10g when handing car tyre.

* Equipped with inch to millimeter and gram to ounce conversion function.
* Standard 42mm thread shaft can be widely used as the universal accessory for
   the domestic and overseas standard wheel balancer, flange disk and thread
   shaft all undertaken supersonic quench and finish milling, strong durable and
   beautiful.

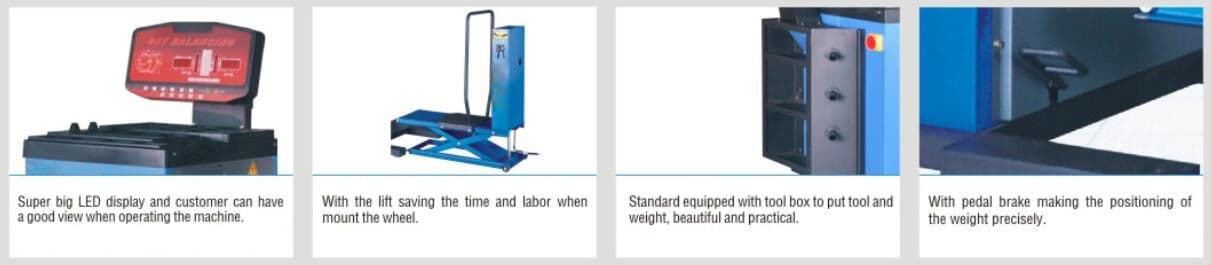

* The display window and the weights cover is independent and difficult to damage
   the screen when operation, the button board will be using more permanent.
* The customer can setup the minimum weight to display according to their
   requirement.
Technical Specification
Rim Diameter
10″ -  24″
Max. Wheel Weight
200 KG
Max. Wheel Diameter
1200 mm
Rim Width
1.5″ -  20″
Rotating Speed
100/200 rpm
Working Pressure
5-8 bar
Motor Power
0.55  kW
Rated Power 585 W
Net Weight
238 KG
Gross Weight
304 KG
Packing Dimension
1300×990×1130 mm
Volume 1.45m3
Quantity in 20” Container
18
Quantity in 40” Container
42
