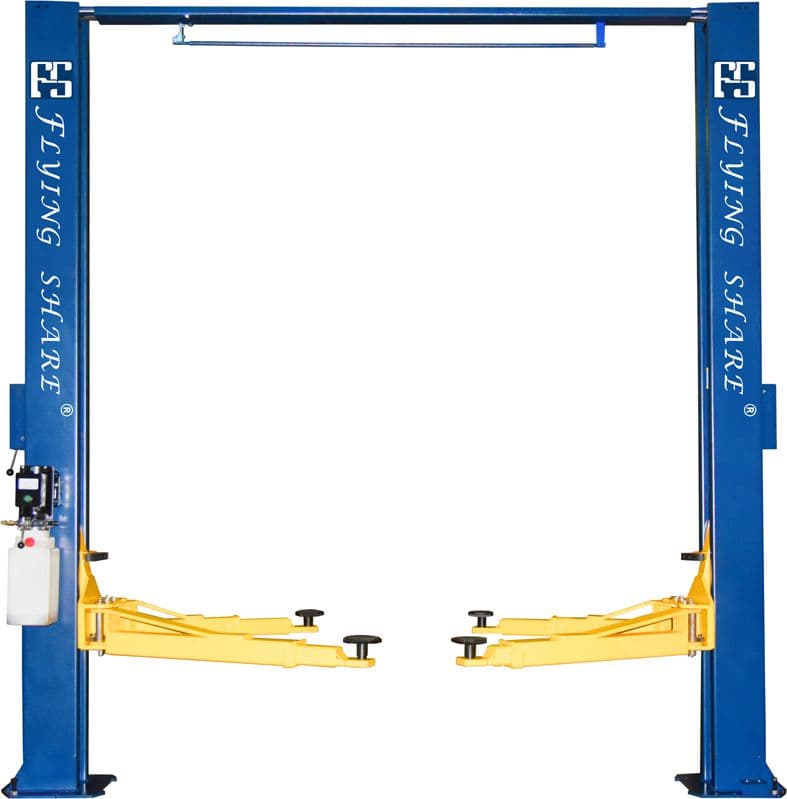

OVERHEAD TWO POST LIFT
FS-6643
Features
* Manual single release for convenient operation
* Gantry design , without influencing the floor space
* Balanced by steel wire ropes
* Driven by direct-drive hydraulic cylinders make it ascent and descent smoothly
* Asymmetrical or symmetrical arm design available

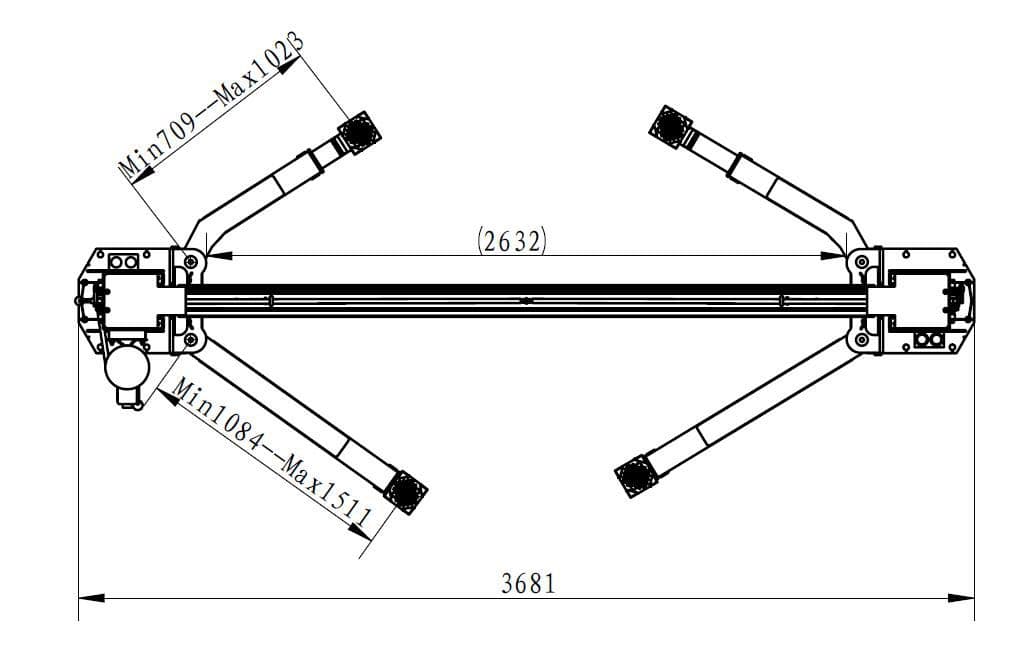

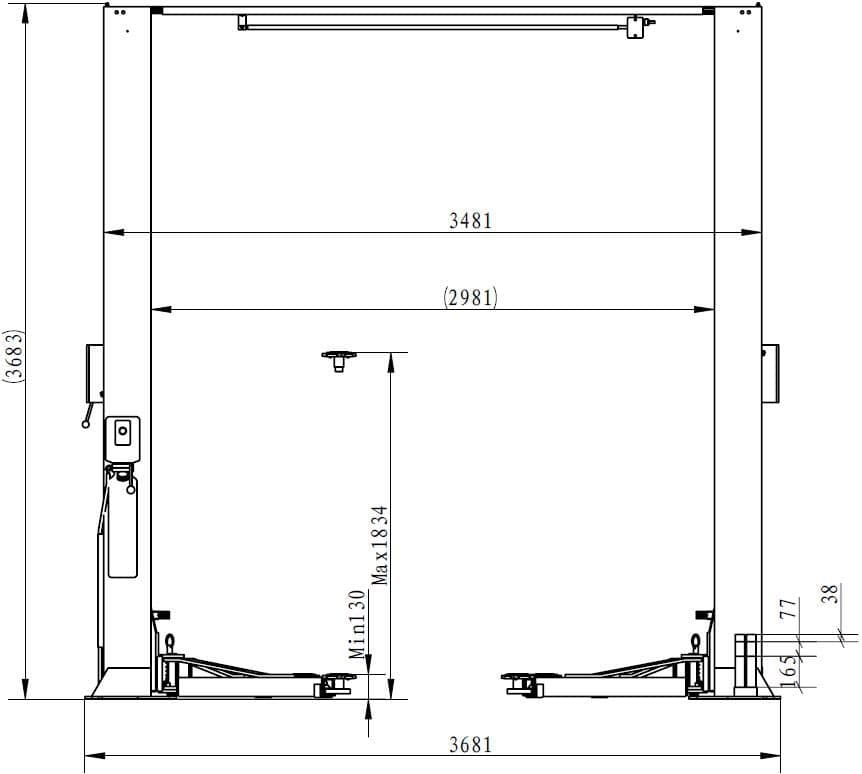

Technical Specification
Lifting Capacity
5.0 Ton
Max. lift. height
1834 mm
Min. height
130 mm
Total height
3683 mm
Total width
3681 mm
Inside column
2981 mm
Lane width
2632 mm
Net weight 883 kgs
Gross weight 906 kgs
