Features
* Hidden structure was lengthened, stable synchronization.
* Facilitate the tires disassembly and maintenance chassis.
* Imported hydraulic pressure, oil seal, electrical and pneumatic components, equipment operation stable and reliable.
* Pneumatic bidentate self-locking tube explosion prevention device and insurance, drop automatically open, avoid wear-resisting material sliding block.
* With hydraulic and mechanical lock bidentate safety insurance device of double insurance claw drop automatically open, through the lock operation can make insurance claw by positioning, safe and reliable.

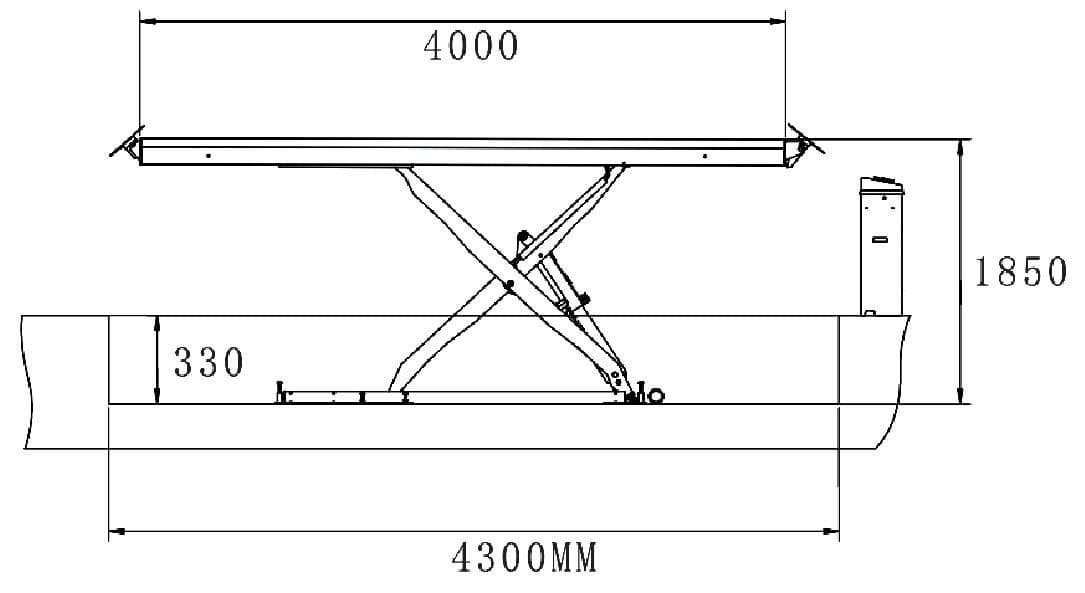

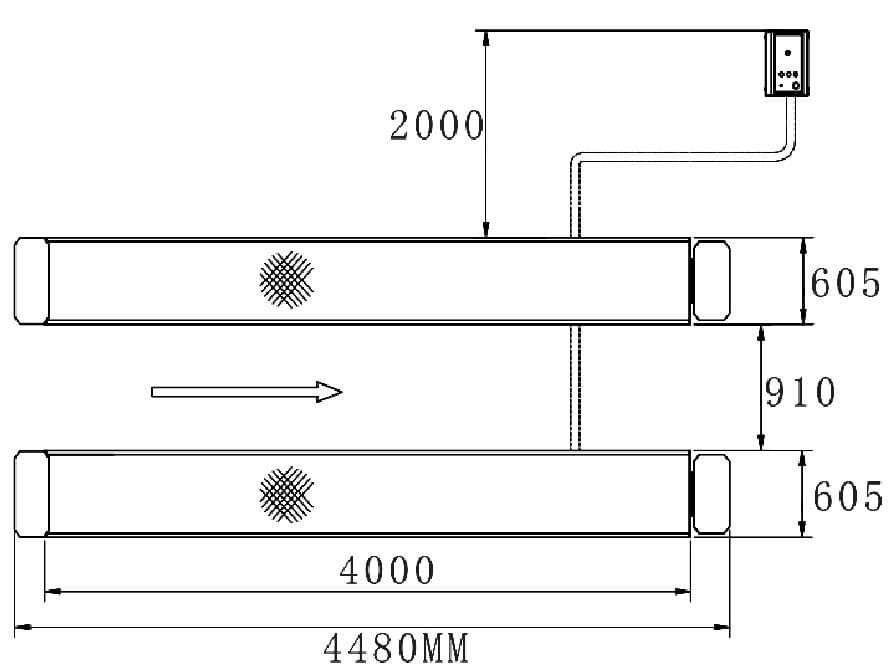

Technical Specification
Lifting Capacity
|
4.0 Ton
|
Lift Height
|
1850 mm
|
|
Gas Source
|
6 - 8 kg/cm3
|
Power
|
2.2 kw
|
|
Platform Width
|
605 mm
|
Platform Length
|
4000 mm
|
|
Power Supply
|
220 v / 380 v
|
