HELP TYRE CHANGER
T626RS

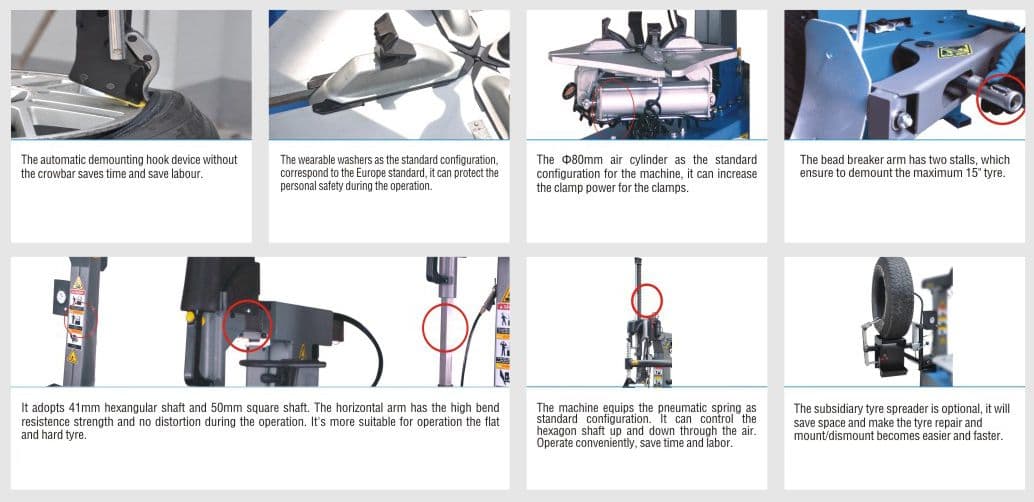

Features
The control pedal assembly has the step-move function which can stop the clamp at any position to clamp the rim conveniently.
* The machine adopts the bead breaker cylinder with Φ200 diameter as standard configuration having bead break power 2800KG to bead break the tyre from rim easily.
The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
The clamp is made of special material, strong and durable.
Technical Specification
Rim Clamping from Outside
11″ -  24″
Rim Clamping from Inside
13″ -  26″
The minimum size for the automatic hook 14"
Maximum Wheel Diameter
1040 mm
Wheel Width
 3″ -  15″
Operating Pressure
8 - 10 bar
Motor power
0.75 / 1.1 kW
Noise Level
<75dB
Net Weight  (Machine+helper+automatic hook)
264 KG + 69 KG = 333 KG
Gross Weight   (Machine+helper+automatic hook)
339 KG + 88 KG = 427 KG
Partially disassemblyed packing(Machine)
1400×1020×1160 mm
Partially disassemblyed packing(helper)  1280×550×450 mm
Volume
1.98m3
Quantity in 20” Container
14
Quantity in 40” Container
28
