FS5.5-6 & 7.5-6 - Flying Share

PRODUCTS

MECHANICAL LIFT

FS5.5-6 & 7.5-6

Features

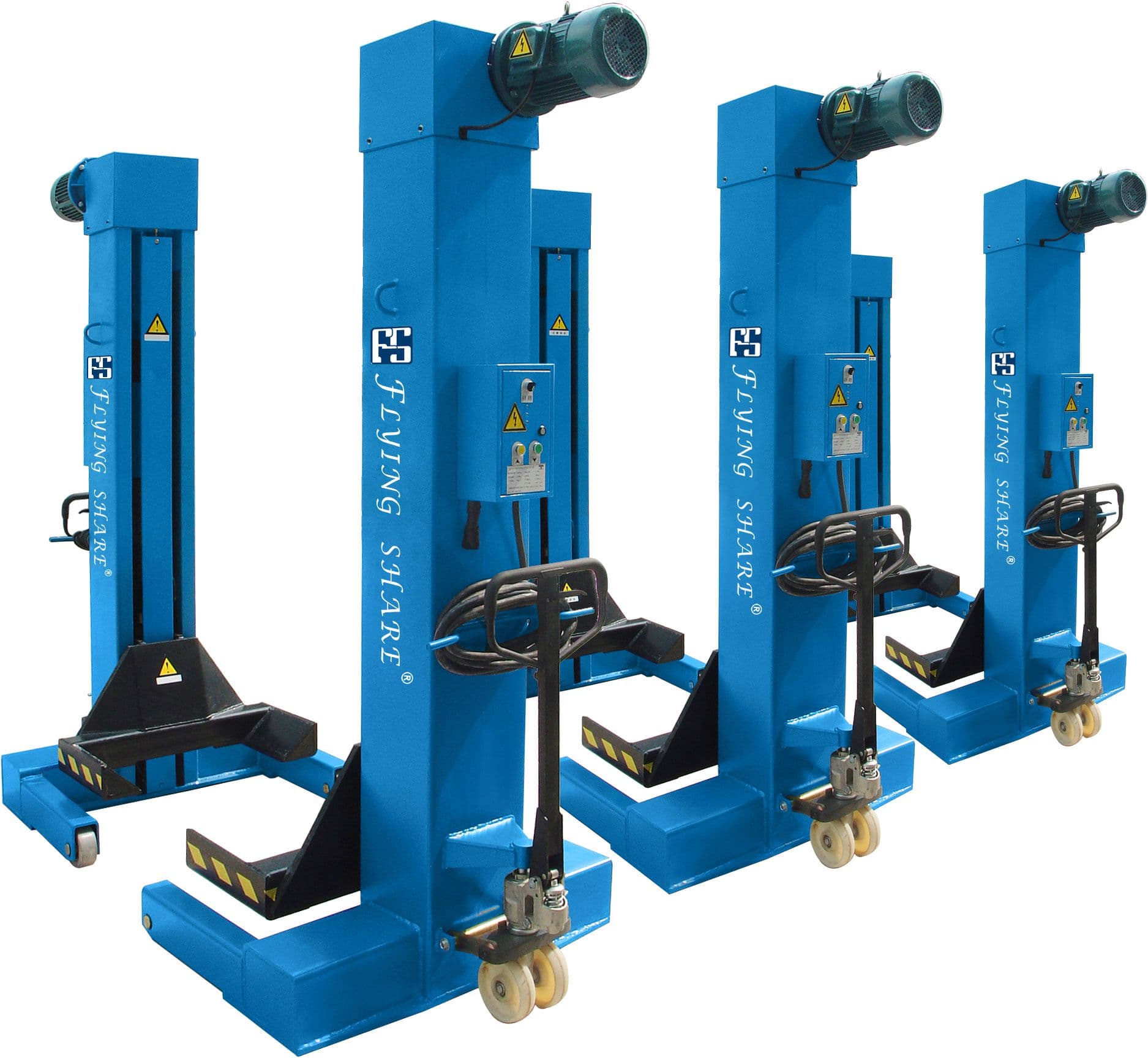

* Mobile column lift for trucks with simple, robust and low-maintenance technology
* Lifting mechanism with hanging spindle
* Geared motor with thermo protection
* 6 cube-design mobile columns for flexible use – indoor and outdoor
* The control can be switched from one to all-column lifting
* With the hand hydraulic jack-lift, the columns can be moved in an easy and secure way

Technical Specification

Model No.	FS5.5-6	FS7.5-6	FS10-6
Lifting Capacity	5500 kg x 6 ( 12126 lbs x 6 )	7500 kg x 6 ( 16535 lbs x 6 )	10000 kg x 6 ( 22047 lbs x 6 )
Lifting height	1550 mm ( 61.03" )	1550 mm ( 61.03" )	1550 mm ( 61.03" )
Lifting speed	10 mm/s	10 mm/s	10 mm/s
Control voltage	24 V	24 V	24 V
Power	415v/400v/380v/220v/3Ph
