Features
* The columns can be moved easily for versatile use indoors or outdoors

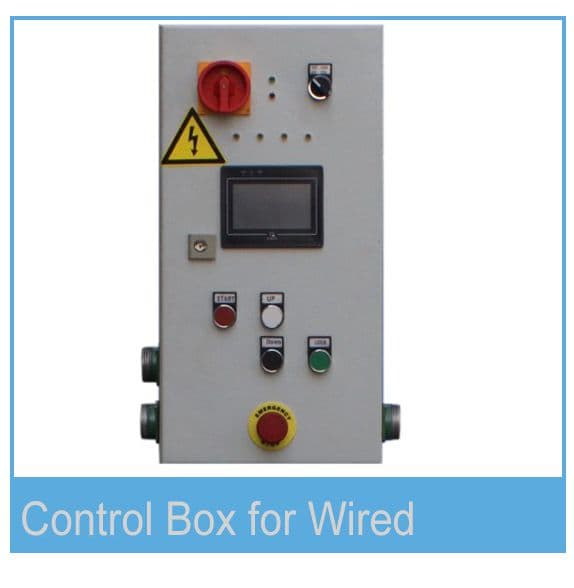

* Ergonomic operation from any column; individual selection of columns within the lift system and multi- functional display
* Precise synchronisation for continuous smooth movement. Careful load handling by soft start
* Quick cable connection, and high lifting speed

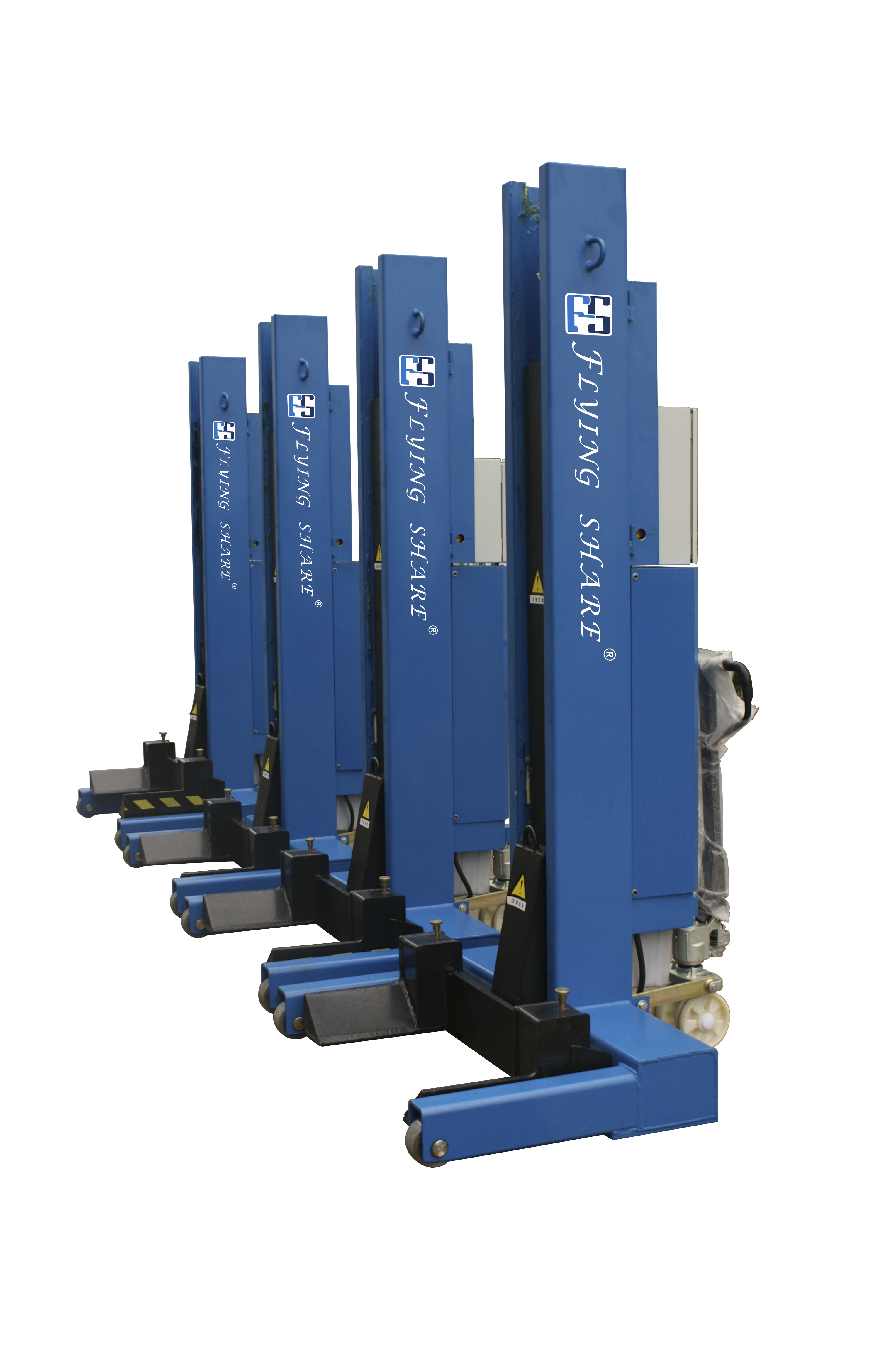

* 4 or 6 cube-design mobile columns for flexible use – indoor
Technical Specification
Model No.
|
FH8.0‐6
|
FH8.0‐4
|
Lifting Capacity
|
8000 kg x 6 ( 17637" x 6 )
|
8000 kg x 4 ( 17637" x 4 )
|

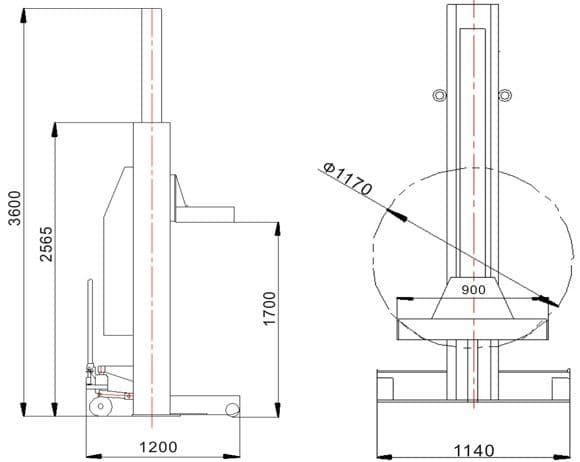

Lift Height
|
1700 mm ( 66.93" )
|
1700 mm ( 66.93" )
|
Lifting Speed
|
21 mm/s
|
21 mm/s
|
Control Voltage
|
24 V
|
24 V
|
Power Supply
|
415V/400V/380V/220V/110V 3Ph/1Ph
|
