ADJUSTABLE MECHANICAL LIFT

AS5.5-4 & 7.5-4

Features

* Mobile column lift for trucks with simple, robust and low-maintenance technology
* Lifting mechanism with hanging spindle

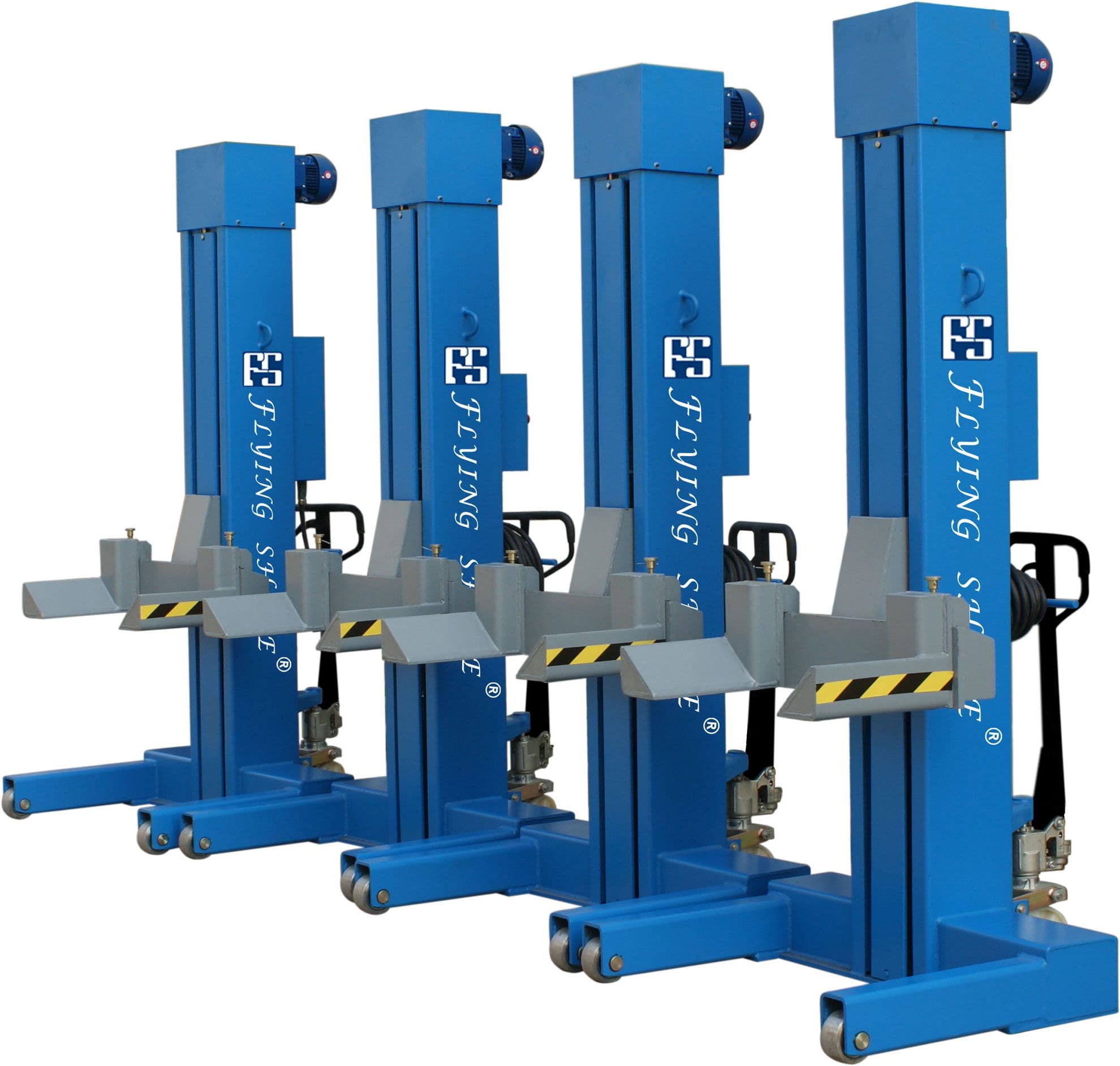

* 4 cube-design mobile columns for flexible use – indoor and outdoor

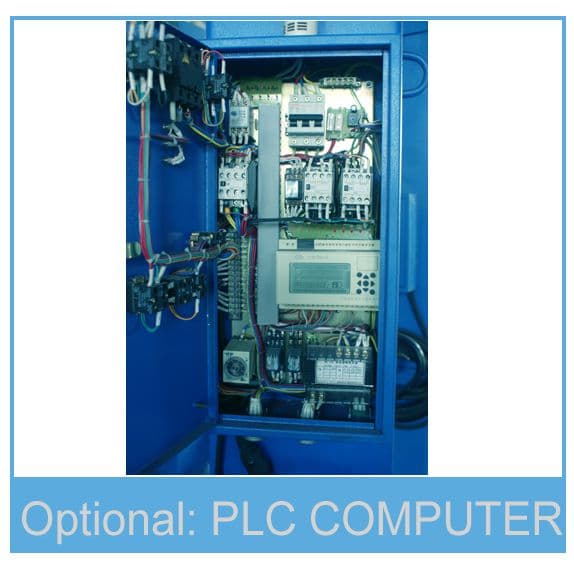

* The control can be switched from one to all-column lifting

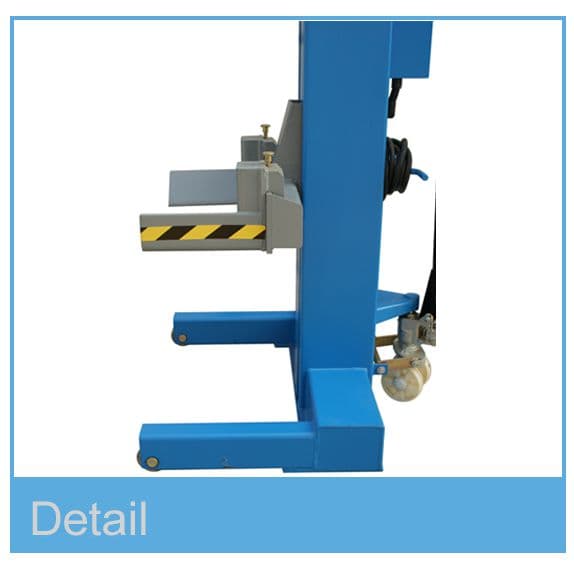

* With the hand hydraulic jack-lift, the columns can be moved in an easy and secure way

Technical Specification

Model No.	AS5.5-4	AS7.5-4	AS10-4
Lifting Capacity	5500 kg x 4 ( 12126 lbsx 4 )	7500 kg x 4 ( 16535 lbs x 4 )	10000 kg x 4 ( 22047 lbs x 4 )

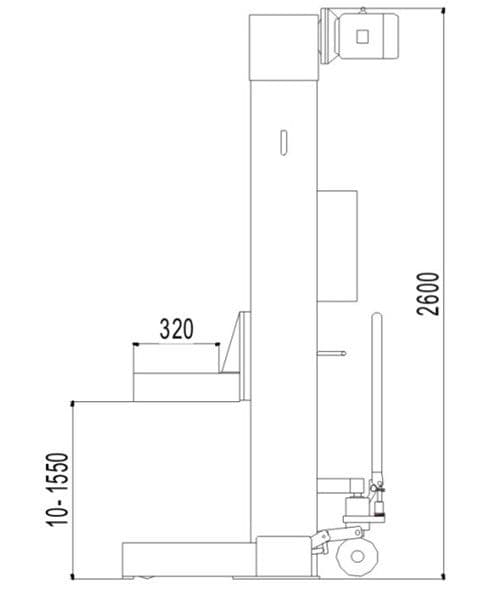

Lifting height	1550 mm ( 61.03" )	1550 mm ( 61.03" )	1550 mm ( 61.03" )
Lifting speed	10 mm/s	10 mm/s	10 mm/s
Control voltage	24 V	24 V	24 V
Power	415v/400v/380v/220v/3Ph
