Features
This type is very suitable for the family and oil speciality shop
* Top built quality with CE-certificate
* Hydraulic overfl ow valve
* 1 hydraulic cylinder mounted under runway cares for a strong lifting and lowering
* Mechanical security locking system
* Manual safety-lock release
* Slackline and cable protection
* Limitation in the column
* Normal platform

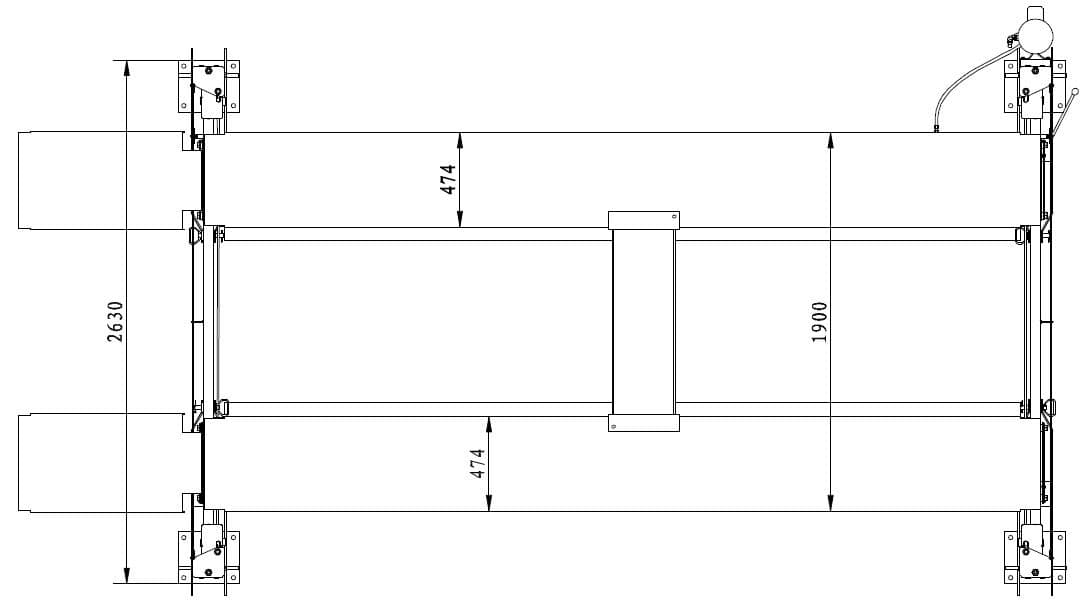

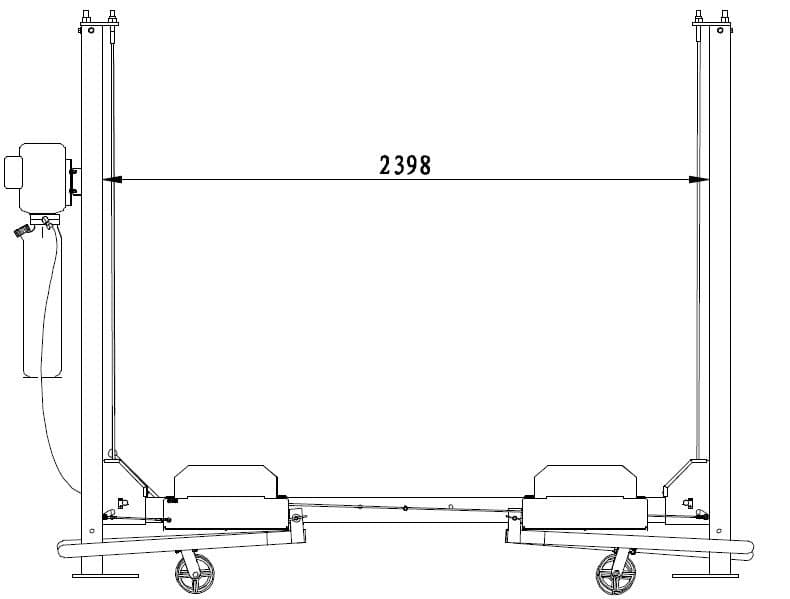

Technical Specification
Lifting Capacity
|
3.6 Ton
|

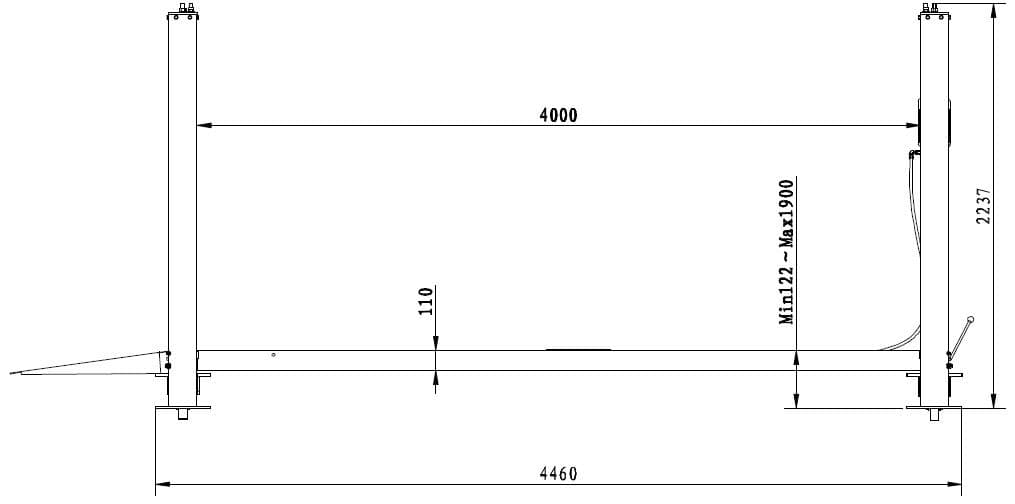

Lift height
|
1900 mm
|
Min height
|
122 mm
|
Total height
|
2237 mm
|
Total width
|
4460 mm
|
Runway width
|
474 mm
|
Runway length
|
4000 mm
|
Net weight
|
725 kgs
|
