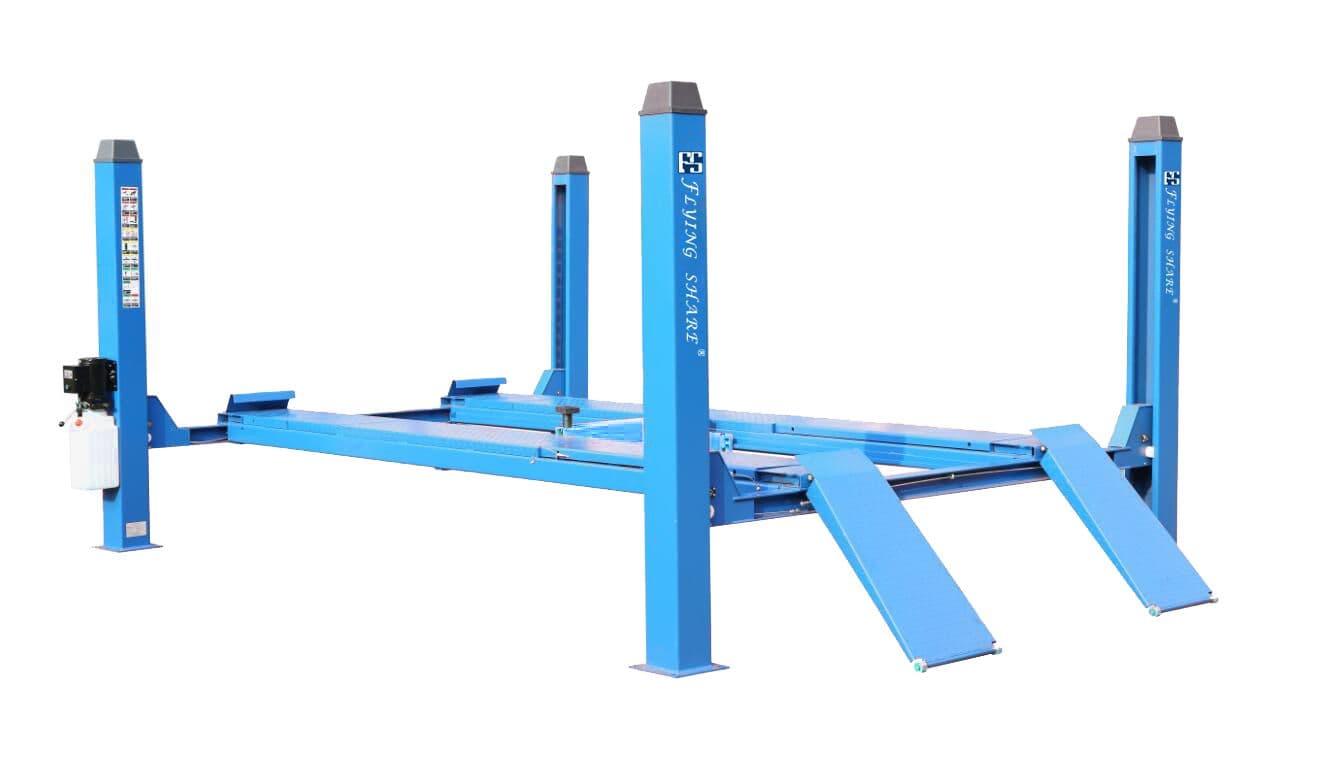

Features
* Driven by hydraulic cyliners,transmitted by steel wire rope,it works quietly,safely
and reliably.
* Steel wire rope and satety handle fixed the column top.
* Approach ramps prevent vehicles from sliding sidewards and front-wheel blocks
prevent vehicles from sliding forward.
* Numeric control bending machine and numeric control cutting machine are used
to ensure precision of lift size.
* Steel-ball blasting and plastic spraying workmanship are adopted to ensrue the
surface looking good for a long time.

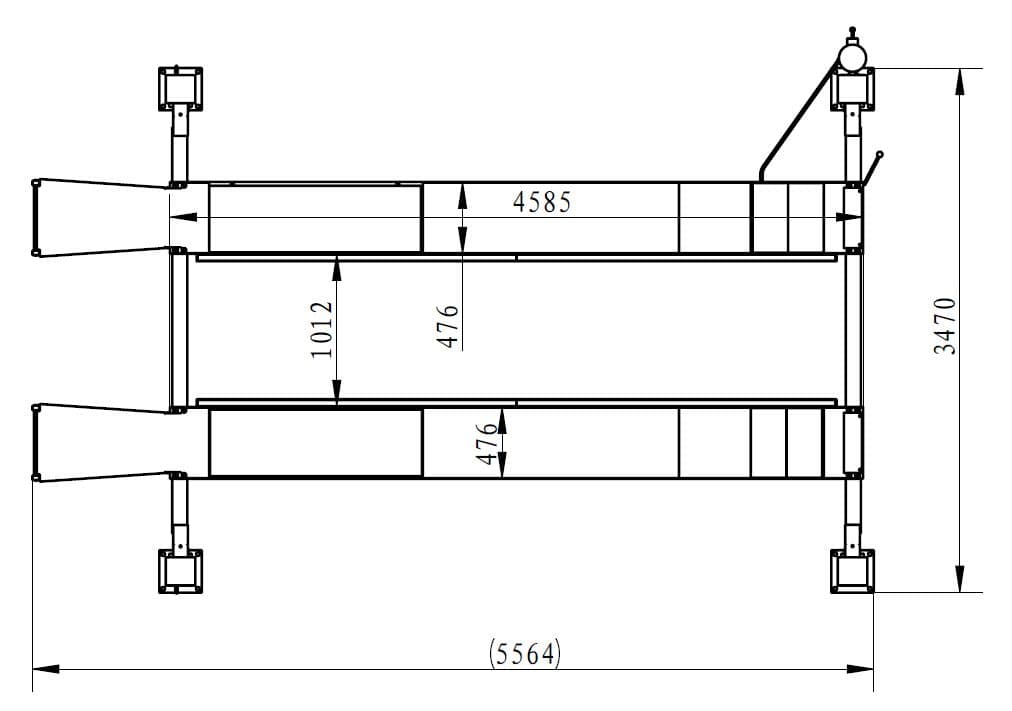

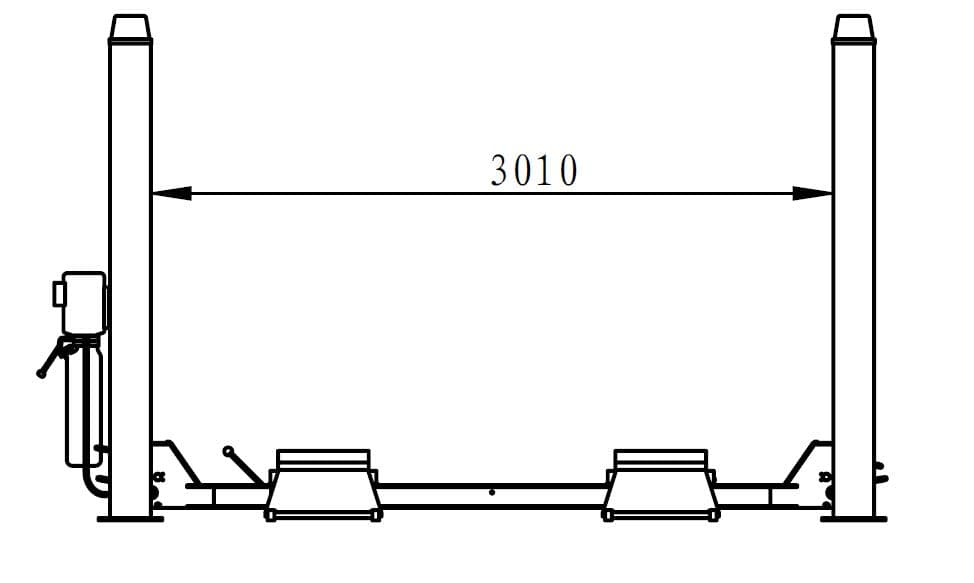

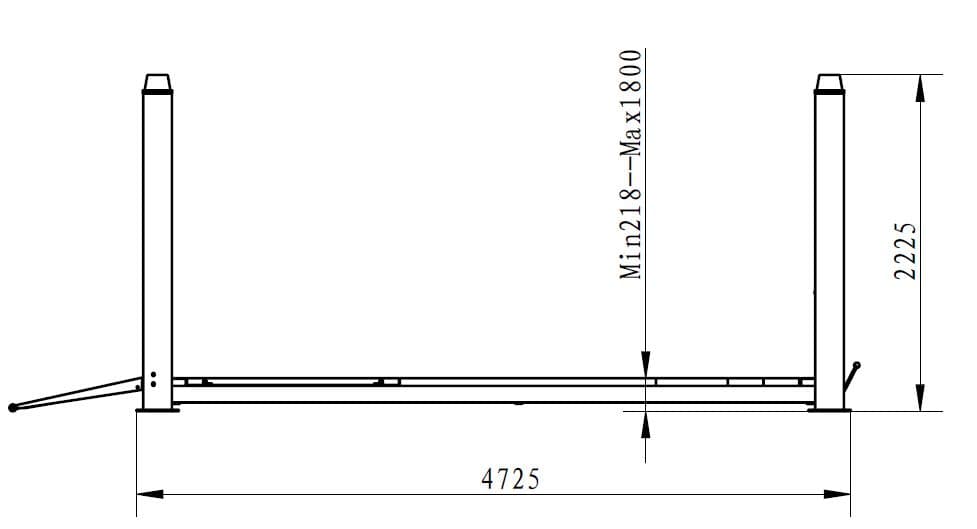

Technical Specification
Lifting Capacity
|
4.0 Ton
|
Lifting height
|
1800 mm
|
Min height
|
218 mm
|
Total height
|
2225 mm
|
Total width
|
3470 mm
|
Runway width
|
476 mm
|
Runway length
|
4725 mm
|
