Features
* Top built quality with CE-certificate

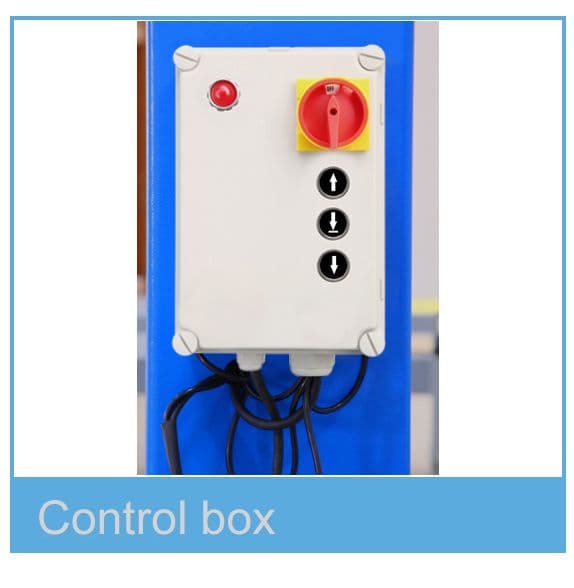

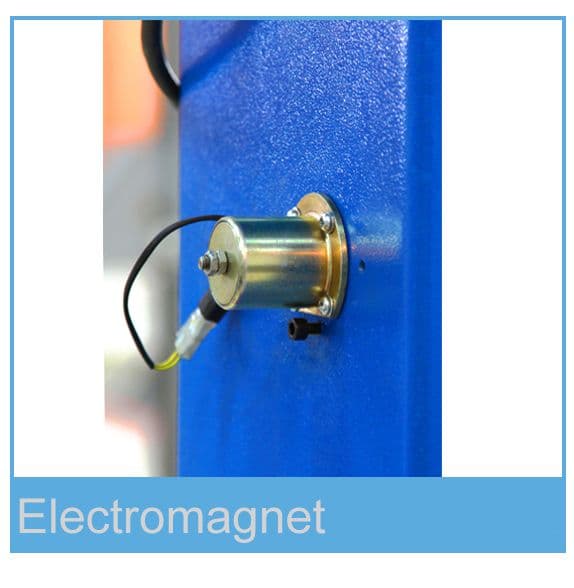

* Electrical release
* Column &Carriage &Arm are all welded by Robots

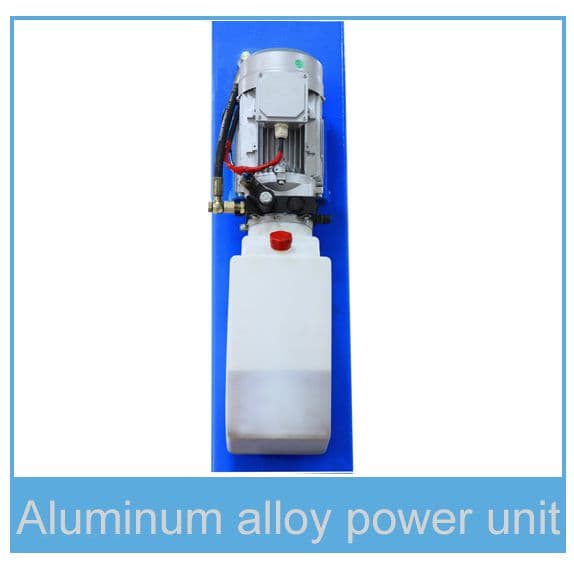

* Driven by dual hydraulic cylinders, make it ascent and descent smoothly.
* Two stage arm and asymmetrical design can be widely used for raising many kinds of cars.

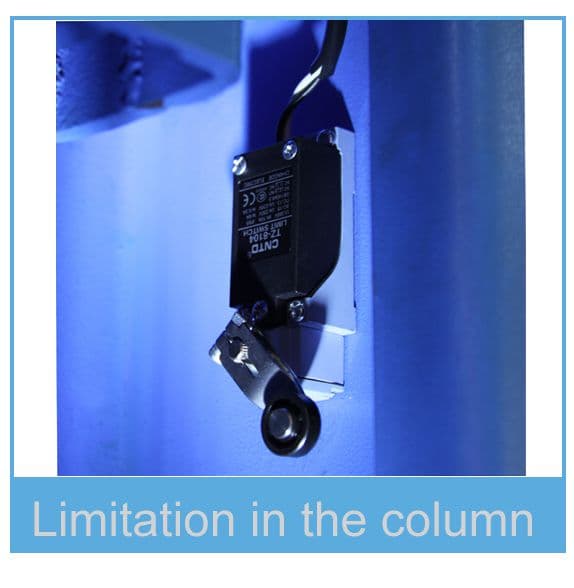

* Column cover & limitation in the column

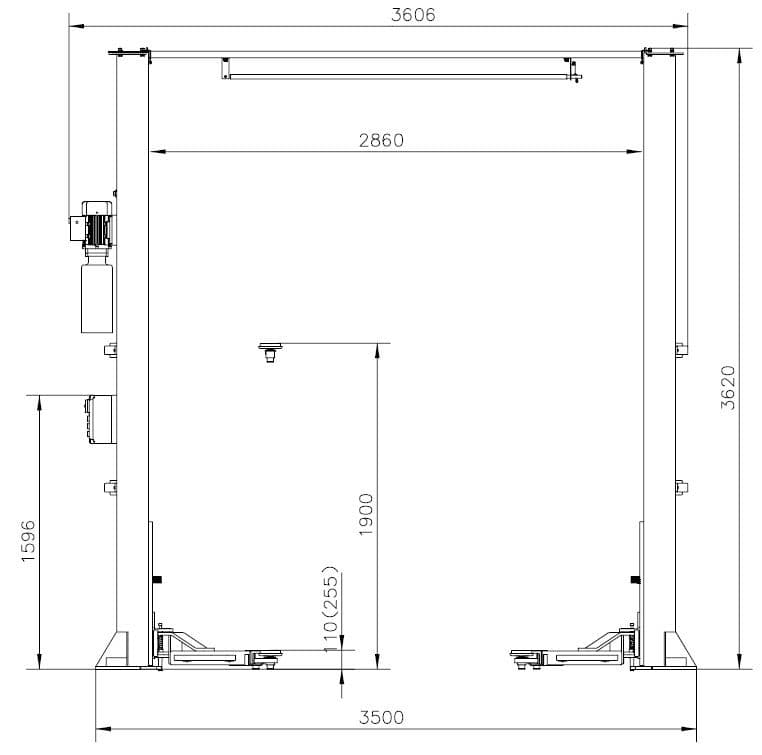

Technical Specification
Lifting Capacity
|
4.0 Ton
|
Max. lift. height
|
1900 mm
|
Min. height
|
110 mm
|
Total height
|
3620 mm
|
Total width
|
3500 mm
|
Inside column
|
2860 mm
|

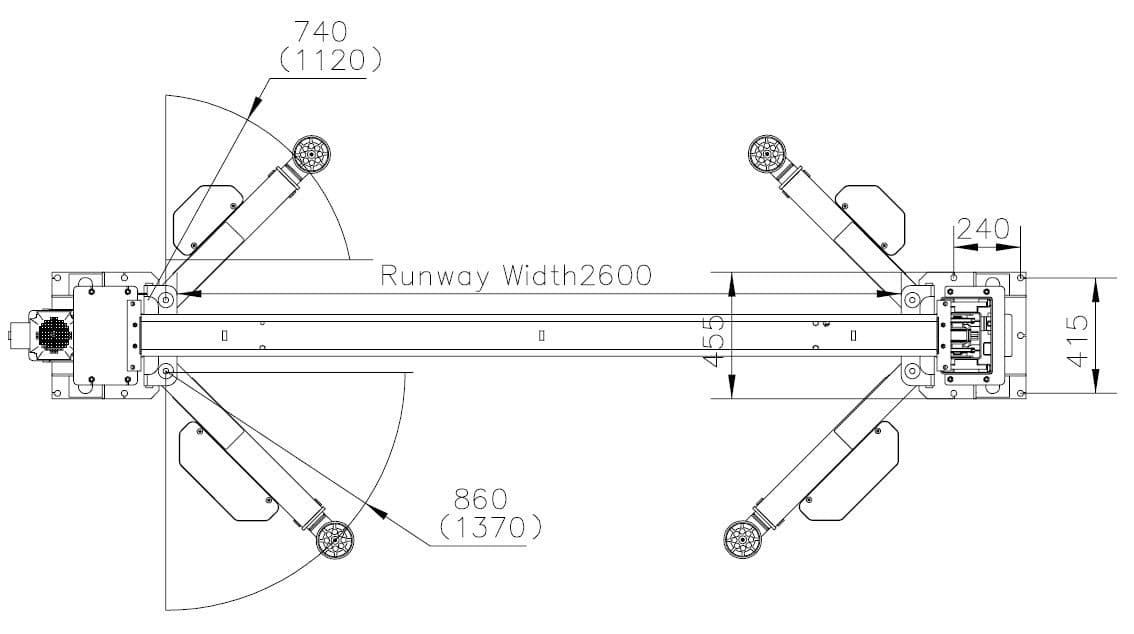

Lane width
|
2600 mm
|
Net weight
|
691 kgs
|
Gross weight
|
706 kgs
|
