Lifting Capacity |
2.5 Ton |
|

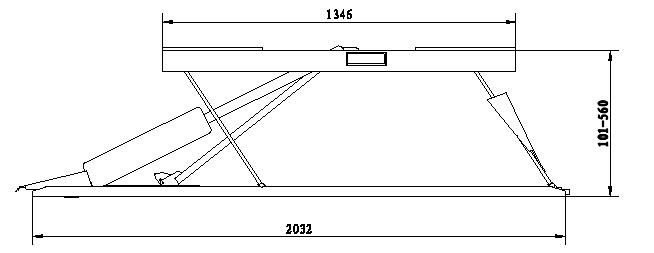

Max. lift. height |
560 mm |
|
Min. height |
101 mm |
|

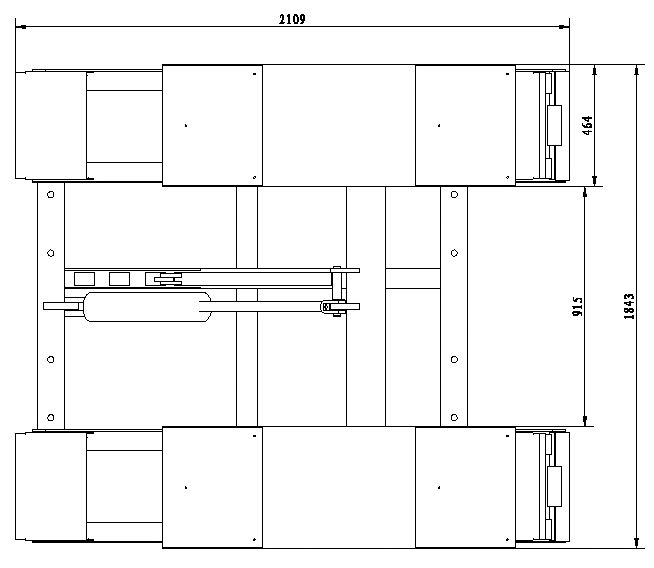

Length |
2109 mm |
|
Width |
1843mm |
|
Raising / Lowering time |
Approx. 51 s |
|
Hydraulic operation pressure |
25 MPa |
| Net weight | 470 kgs |
| Gross weight | 500 kgs |
